EHCU installation

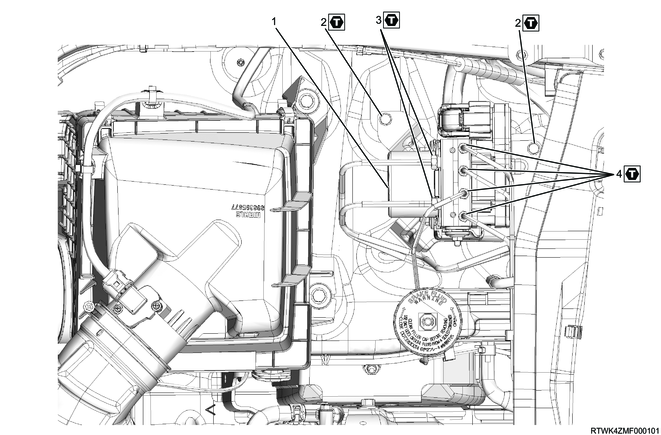

1. Component views

EHCU

Part name

  1. EHCU
  2. Bolt
  3. Flare nut
  4. Flare nut

Tightening torque

2: 8.2 N・m { 0.8 kgf・m / 73 lb・in }

3: 13 to 19 N・m { 1.3 to 1.9 kgf・m / 10 to 14 lb・ft } Except ESC specifications

3: 16 to 24 N・m { 1.6 to 2.4 kgf・m / 12 to 18 lb・ft } ESC specifications

4: 13 to 19 N・m { 1.3 to 1.9 kgf・m / 10 to 14 lb・ft }

2. EHCU safety information

Caution

  • Make sure to use a ground bolt when installing the ground connection.
  • Make sure that there is no dirt or foreign material when connecting the brake pipe.
  • Do not mistake the brake pipe connection ends.
  • Use new brake fluid, and only of the specified type.
  • When replacing the EHCU, it is needed to write the vehicle information to a new EHCU.

3. EHCU installation

1) Install the EHCU to the frame.

Tightening torque: 8.2 N・m { 0.8 kgf・m / 73 lb・in }

2) Connect the brake pipe to the EHCU.

Tightening torque: 13 to 19 N・m { 1.3 to 1.9 kgf・m / 10 to 14 lb・ft } Brake side

Tightening torque: 13 to 19 N・m { 1.3 to 1.9 kgf・m / 10 to 14 lb・ft } Master cylinder side (Except ESC specifications)

Tightening torque: 16 to 24 N・m { 1.6 to 2.4 kgf・m / 12 to 18 lb・ft } Master cylinder side (ESC specifications)

3) Connect the harness connector to the EHCU.

4. Preliminary and post procedures

1. Post procedures

1) Connect the battery cable to the battery negative terminal.

2) Referring to the following, perform the setting of the front door power window switch with AUTO UP/AUTO DOWN function.

5. Brake fluid filling

The air bleeding procedure needs cooperation of 2 persons.

1. Precautions for brake fluid refill and air bleeding procedures

Caution

  • In the following cases, refill with brake fluid and bleed the air.
  • The brake pipe, brake hose, etc., have been disconnected.
  • Air is in the hydraulic system.
  • Brake fluid has been drained.
  • The brake is used when the fluid level in the brake fluid tank is extremely low.

Caution

  • Securely engage the parking brake during the air bleeding procedure.
  • When refilling with brake fluid and bleeding the air with the tires in contact with the ground, move the vehicle to a level area, and set chock blocks in place at the tires.
  • Always fill with new brake fluid.
  • Fill with brake fluid to prevent the mixing in of air bubbles.
  • To prevent intrusion of dirt, etc., clean the reservoir tank before removing the cap.
  • Add brake fluid up to the tank MAX level before the air bleeding procedure to prevent air from entering.
  • Do not fill the brake fluid tank with brake fluid over the MAX level.
  • Continue to adding brake fluid to at least half the brake fluid tank during the air bleeding procedure.

The brake fluid tank is shared with the clutch fluid tank. Because a partition inside the tank causes the fluid amounts of the brake chamber and clutch chamber to be different, check the brake fluid on the brake chamber side.

Legend

  1. MAX level
  2. MIN level
  3. Brake fluid chamber

Caution

  • Bleed air until air has been fully discharged from the hydraulic system.
  • Perform air bleeding procedures while maintaining sufficient brake fluid levels.
  • Use the following brake fluid brands.

Refer to "201.General Information 14B.Vehicle Information recommended fluids, lubricants and diesel fuels".

Caution

  • Do not use any brake fluid that contains petroleum components.

The rubber parts in the hydraulic brake system will expand or warp.

Caution

  • Do not use any brake fluid container that contains petroleum components or that is wet with water.

If water has entered, the boiling point of the brake fluid will be lowered.

Caution

  • Seal all containers to prevent them from getting dirty.
  • Because the painted surface will be damaged, do not spill brake fluid on a painted surface.
  • Bleed air from the brake fluid while the engine is running, and ventilate the room properly.

The vacuum brake booster may be broken if air bleeding is performed without starting the engine.

Caution

  • Be sure to check the brake fluid level on the brake fluid chamber side.

The brake fluid tank is shared with the clutch fluid tank, and a partition inside the tank causes the fluid amounts of the brake chamber and clutch chamber to be different.

Caution

  • For models with ABS specifications, remove the ABS slow blow fuse before performing the air bleeding procedure.

The ABS unit may be broken if air bleeding is performed without removing the ABS slow blow fuse.

2. Preparations for brake fluid refill and air bleeding procedures

Open the engine hood after pulling the parking brake lever.

1) Apply the parking brake.

2) Start the engine.

3) Remove the cap from the brake fluid tank.

4) Replenish the brake fluid tank with the brake fluid.

5) Perform the air bleeding procedure in the following order.

  • Brake master cylinder (When the brake master cylinder has been removed)
  • Left rear wheel cylinder
  • Right rear wheel cylinder
  • Left front brake caliper
  • Right front brake caliper

Note

  • If the brake fluid level is lowered or if air enters when the brake pipe is removed from the master cylinder, the air bleeding may be required at all 4 brakes.
  • When brake pipes have been removed from any of the brakes, air bleeding must be performed for that wheel cylinder or caliper.
  • If the piping is removed between the master cylinder and each brake, air bleeding of the operating brake system needs to be performed at the removed piping.

3. Air bleeding (Brake master cylinder)

1) Inspect the brake fluid level.

Note

  • Refill the brake fluid as necessary.
  • If the brake fluid has been filled, leave the system for at least 1 minute.

2) Disconnect the rear brake pipe from the brake master cylinder.

Legend

  1. Front brake pipe
  2. Rear brake pipe

3) Slowly depress the brake pedal once and hold it down.

4) Use a finger to completely plug the outlet of the master cylinder that is removed from the brake pipe, and slowly release the brake pedal.

5) Remove the finger from the outlet after the brake pedal has been completely returned.

Note

  • Repeat the process mentioned above until the brake fluid comes out overflowing from the outlet.

Caution

  • Be careful that the fluid level in the reservoir tank does not drop below the intermediate level indication.

6) Connect the brake pipe to the brake master cylinder.

7) Slowly depress the brake pedal once and hold it down.

8) Loosen the rear brake pipe.

9) Tighten the brake pipe again and slowly return the brake pedal.

Tightening torque: 13 to 19 N・m { 1.3 to 1.9 kgf・m / 10 to 14 lb・ft } Except ESC specifications

Tightening torque: 16 to 24 N・m { 1.6 to 2.4 kgf・m / 12 to 18 lb・ft } ESC specifications

10) Repeat the above procedure until no air is bled from the outlet when loosening the brake pipe.

11) Bleed the front brake pipe in the same way.

4. Air bleeding (Brake wheel cylinder or brake caliper)

Caution

  • Bleed air 10 times or more for the front wheel, and 15 times or more for the rear wheel.

1) Apply an appropriate wrench to the bleeder.

2) Connect a clear tube to the bleeder.

3) Dip one end of the tube into a clear container filled with brake fluid.

Note

  • The container should be approximately 1/3 full of brake fluid.

4) Slowly depress the brake pedal 3 times with a speed of once per second and hold it down.

Legend

  1. Brake pedal

5) Loosen the bleeder approximately 1/2 a turn and bleed the air from the brake fluid.

6) Tighten the bleeder.

Brake type
 Tightening torque
Front disc brake
 9 to 13 N・m { 0.9 to 1.3 kgf・m / 80 to 115 lb・in }
Rear drum brake
 6 to 8 N・m { 0.6 to 0.8 kgf・m / 53 to 71 lb・in }

7) Release the brake pedal.

Caution

  • Repeat the process mentioned above until no air bubbles are found in the discharged brake fluid.
  • If brake fluid does not come out, discharge air from the master cylinder.

Air has entered the master cylinder.

5. Inspection after bleeding air

1) After air bleeding is complete, depress the brake pedal and check for any abnormal conditions.

2) Check the brake fluid level in the brake fluid tank, and fill the brake fluid tank with brake fluid as necessary.

Caution

  • When filling, do not exceed the MAX level.

3) Depress the brake pedal and check for a sponge-like feeling.

Caution

  • If feeling like a sponge, repeat the air bleeding process.

4) Stop the engine.

Note

  • After completing the air bleeding procedure for the brake system, bleed the air from the clutch system as necessary.

5) Inspect all the brake pipes and brake hoses for the following.

  • Wear
  • Bending
  • Damage
  • Cracking
  • Dent

Note

  • Repair or replace if any abnormal conditions are found.

Caution

  • Joints of all pipes and hoses can be easily damaged.
  • Do not twist or bend the hose excessively when performing the procedure. Do not break the brake pipe when repairing or replacing the axle, suspension, etc.
  • When installing the brake pipe or the brake hose, make sure to perform inspection.
  • After removing the brake pipe or the brake hose, use a plug, tape, etc., to cover the opening and prevent the intrusion of foreign material.

6) Close the engine hood.

6. ABS slow blow fuse installation (ABS specifications)

1) Install the ABS slow blow fuse to the fuse box.

2) Turn ON the ignition switch and make sure the warning light turns OFF.

Caution

  • Clear the DTCs that were set to the EHCU by removing fuses.
