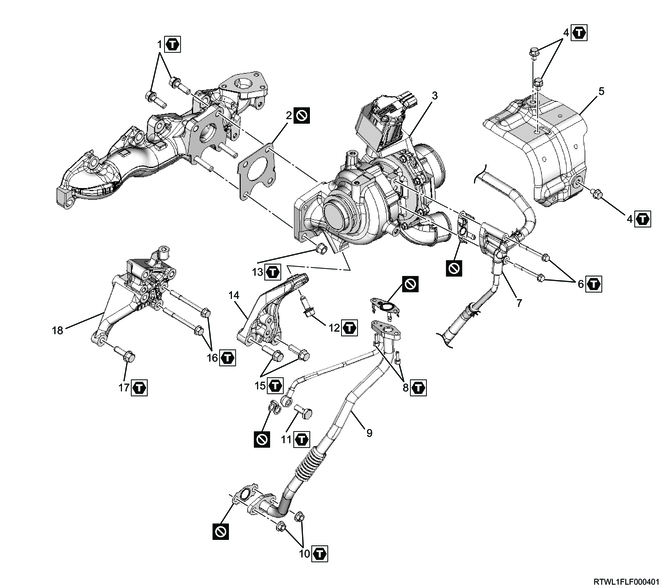

Turbocharger removal (4JJ3 without DPD)

Part name

Tightening torque

1: 52 N・m { 5.3 kgf・m / 38 lb・ft }

4: 25 N・m { 2.5 kgf・m / 18 lb・ft }

6: 10.0 N・m { 1.0 kgf・m / 89 lb・in }

8: 10.0 N・m { 1.0 kgf・m / 89 lb・in }

10: 25 N・m { 2.5 kgf・m / 18 lb・ft }

11: 23 N・m { 2.3 kgf・m / 17 lb・ft }

12: 51 N・m { 5.2 kgf・m / 38 lb・ft }

13: 52 N・m { 5.3 kgf・m / 38 lb・ft }

15: 51 N・m { 5.2 kgf・m / 38 lb・ft }

16: 25 N・m { 2.5 kgf・m / 18 lb・ft }

17: 51 N・m { 5.2 kgf・m / 38 lb・ft }

Refer to "1.Engine 1H.Aux. Emission Control Devices(4JJ3 without DPD) EGR cooler removal".

Refer to "1.Engine 1G.Exhaust(4JJ3 without DPD) catalytic converter removal".

1) Remove the intake hose from the intercooler and turbocharger.

Legend

1) Disconnect the turbocharger water feed hose from the water feed and return pipe.

2) Disconnect the turbocharger water return hose from the water feed and return pipe.

Legend

1) Disconnect the turbocharger oil pipe from the oil cooler and crankcase.

Legend

1) Remove the turbocharger upper bracket from the turbocharger and turbocharger lower bracket.

1) Disconnect the connector from the turbocharger.

2) Remove the following parts as a set from the exhaust manifold.

3) Remove the turbocharger oil pipe and gasket from the turbocharger.

Legend

4) Remove the water feed and return pipe, as well as the gasket from the turbocharger.
