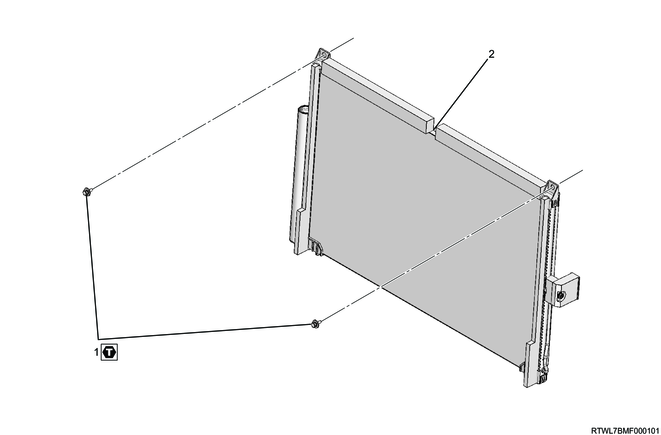

1. Component views
Condenser
Part name
- Bolt
- Condenser
Tightening torque
1: 6.6 N・m { 0.7 kgf・m / 58 lb・in }
2. Refrigerant preparation
1) Recover the refrigerant using the refrigerant recovery equipment.
Note
- Refer to the instruction manual for the refrigerant recovery equipment.
3. A/C hose disconnect
1) Disconnect the A/C hose from the condenser.
Note
- Plug the connection to prevent foreign material from entering the A/C cycle.
Legend
- Condenser
- A/C hose
- A/C pipe
- Bolt
4. Radiator removal
Refer to "1.Engine 1D.Cooling(4JJ3 with DPD) radiator removal".
Refer to "1.Engine 1D.Cooling(4JJ3 without DPD) radiator removal".
Refer to "1.Engine 1D.Cooling(RZ4E-TC) radiator removal".
5. Condenser removal
1) Remove the condenser from the vehicle.
Caution
- Do not damage the condenser.
