1
|
VERIFY FREEZE FRAME DATA (MODE 2)/SNAPSHOT DATA HAS BEEN RECORDED
• Has the FREEZE FRAME DATA (Mode 2)/snapshot data been recorded?
|
Yes
|
Go to the next step.
|
|
No
|
Record the FREEZE FRAME DATA (Mode 2)/snapshot data on the repair order, then go to the next step.
|
|
2
|
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
• Verify related Service Information availability.
• Is any related Service Information available?
|
Yes
|
Perform repair or diagnosis according to the available Service Information.
• If the vehicle is not repaired, go to the next step.
|
|
No
|
Go to the next step.
|
|
3
|

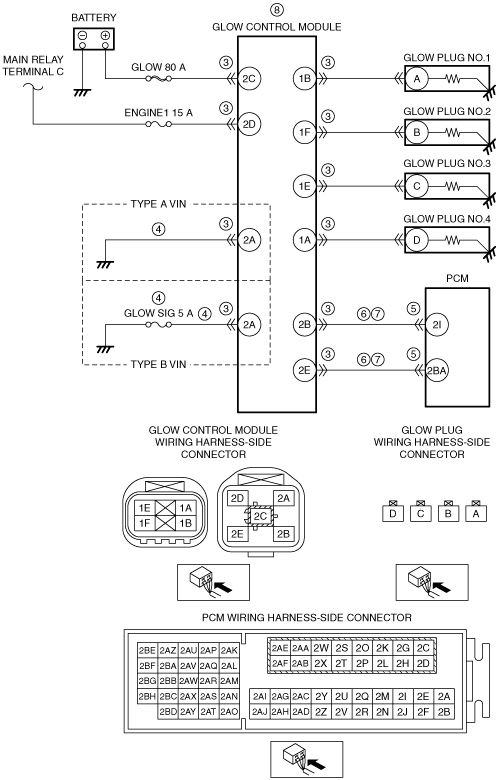

INSPECT GLOW CONTROL MODULE CONNECTOR CONDITION
• Switch the ignition off.
• Disconnect the glow control module connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the connector and/or terminals, then go to Step 9.
|
|
No
|
Go to the next step.
|
|
4
|
INSPECT GLOW CONTROL MODULE GROUND CIRCUIT FOR OPEN CIRCUIT
• Verify that the glow control module connector is disconnected.
• Inspect for continuity between glow control module terminal 2A (wiring harness-side) and body ground.
• Is there continuity?
|
Yes
|
Go to the next step.
|
|
No
|
Type A VIN:
• Repair or replace the wiring harness for a possible open circuit, then go to Step 9.
Type B VIN:
• Inspect the GLOW SIG 5 A fuse.
-
― If the fuse is burnt out or deteriorated:
-
• Replace the fuse.
― If the fuse is normal:
-
• Repair or replace the wiring harness for a possible open circuit.
• Go to Step 9.
|
|
5
|
INSPECT PCM CONNECTOR CONDITION
• Disconnect the PCM connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the connector and/or terminals, then go to Step 9.
|
|
No
|
Go to the next step.
|
|
6
|
INSPECT GLOW CONTROL MODULE CIRCUIT FOR SHORT TO POWER SUPPLY
• Verify that the glow control module and PCM connectors are disconnected.
• Switch the ignition ON (engine off).
• Measure the voltage at the following terminals (wiring harness-side):
-
― Glow control module terminal 2B
― Glow control module terminal 2E
• Is the voltage 0 V?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the wiring harness for a possible short to power supply, then go to Step 9.
|
|
7
|
INSPECT GLOW CONTROL MODULE CIRCUIT FOR OPEN CIRCUIT
• Verify that the glow control module and PCM connectors are disconnected.
• Switch the ignition off.
• Inspect for continuity between the following terminals (wiring harness-side):
-
― Glow control module terminal 2B—PCM terminal 2I
― Glow control module terminal 2E—PCM terminal 2BA
• Is there continuity?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the wiring harness for a possible open circuit, then go to Step 9.
|
|
8
|
INSPECT GLOW CONTROL MODULE
• Inspect the glow control module.
• Is there any malfunction?
|
Yes
|
Replace the glow control module, then go to the next step.
|
|
No
|
Go to the next step.
|
|
9
|
VERIFY DTC TROUBLESHOOTING COMPLETED
• Always reconnect all disconnected connectors.
• Clear the DTC from the PCM memory using the M-MDS.
• Perform the DTC Reading Procedure.
• Is the same DTC present?
|
Yes
|
Repeat the inspection from Step 1.
• If the malfunction recurs, replace the PCM.
Go to the next step.
|
|
No
|
Go to the next step.
|
|
10
|
VERIFY AFTER REPAIR PROCEDURE
• Perform the “AFTER REPAIR PROCEDURE”.
• Are any DTCs present?
|
Yes
|
Go to the applicable DTC inspection.
|
|
No
|
DTC troubleshooting completed.
|
