ENGINE MOUNT DISASSEMBLY/ASSEMBLY [SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0110h3806900


No.1 Engine Mount (2WD)

1.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

ac5uuw00000637

1
No.1 engine mount rubber
(See No.1 engine mount rubber removal note (2WD).)
(See No.1 engine mount installation note (2WD).)
2
Bracket plate (No.1)
(See No.1 engine mount installation note (2WD).)
3
No.1 engine mount bracket
(See No.1 engine mount installation note (2WD).)
4
Bracket plate (No.2)
(See No.1 engine mount installation note (2WD).)


No.1 engine mount rubber removal note (2WD)

1.  Loosen the bolts shown in the figure.

ac5uuw00000638

Note
•  The bracket plate (No.1) can move slightly by loosening the bolts shown in the figure and the No.1 engine mount rubber can be easily removed.

2.  Remove the No.1 engine mount rubber.


No.1 engine mount installation note (2WD)

1.  Install the No.1 engine mount bracket, plate (No.1), and plate (No.2) and temporarily tighten the installation bolts.

2.  Tighten the bolt shown in the figure.

ac5uuw00000639

Tightening torque
8—10 N·m {82—101 kgf·cm, 71—88 in·lbf}

3.  Install the No.1 engine mount rubber and temporarily tighten the installation bolts.

4.  Tighten the No.1 engine mount bracket, plate (No.1) and plate (No.2) installation bolts in the order shown in the figure.

ac5uuw00000640

Tightening torque
84—98 N·m {8.6—9.9 kgf·m, 62—72 ft·lbf}

5.  Tighten the No.1 engine mount rubber installation bolts.

ac5uuw00000641


No.1 Engine Mount (4WD)

Note
•  When removing the No.1 engine mount rubber for 4WD vehicles, loosen the front crossmember installation bolts and perform the procedure with the front crossmember component lowered to 15—20 mm {0.60—0.78 in}.
•  When removing the No.1 engine mount bracket for 4WD vehicles, perform the procedure with the front crossmember component and transfer completely removed from the vehicle.

1.  Remove the front under cover No.1 and front under cover No.2. (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.) (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

2.  Set the front mudguard away from the front crossmember and front bumper. (See MUDGUARD REMOVAL/INSTALLATION.)

ac5uuw00000642

3.  Remove the splash shield. (See SPLASH SHIELD REMOVAL/INSTALLATION.)

4.  Remove in the order indicated in the table.

5.  Install in the reverse order of removal.

6.  Inspect the front wheel alignment. (See FRONT WHEEL ALIGNMENT.)

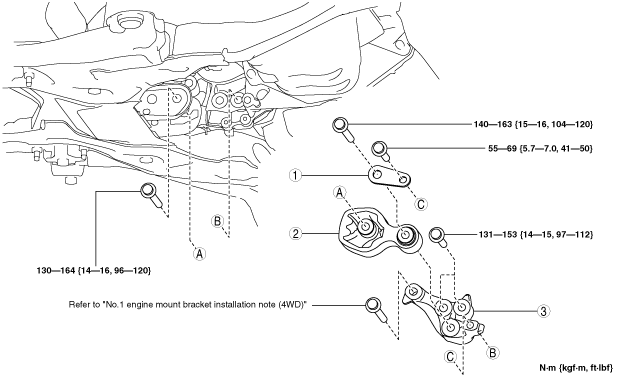

ac5wzw00006679

1
Bracket plate
(See No.1 engine mount rubber, bracket plate installation note (4WD).)
2
No.1 engine mount rubber
(See No.1 engine mount rubber removal note (4WD).)
(See No.1 engine mount rubber, bracket plate installation note (4WD).)
3
No.1 engine mount bracket
(See No.1 engine mount bracket removal note (4WD).)
(See No.1 engine mount bracket installation note (4WD).)


No.1 engine mount rubber removal note (4WD)

1.  Remove the joint bolt (steering gear side) and disconnect the steering shaft from the steering gear and linkage. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

2.  Remove the front crossmember extension from the front crossmember.

ac5wzw00005606

3.  Remove the insulator shown in the figure.

ac5uuw00000645

4.  Remove the hanger rubber shown in the figure.

ac5wzw00006248

5.  Disconnect the front stabilizer link (front stabilizer side). (See FRONT STABILIZER REMOVAL/INSTALLATION.)

6.  Remove the No.1 engine mount rubber installation bolt (front crossmember side).

ac5uuw00000647

7.  Support the front crossmember component using a jack.

ac5uuw00000648

8.  Loosen the front crossmember installation bolts (8) and lower the front crossmember component to 15—20 mm {0.60—0.78 in}.

ac5uuw00000649

Note
•  To remove the No.1 engine mount rubber, lower the front crossmember component to make clearance between the component and transfer.

9.  Remove the No.1 engine mount rubber.

ac5uuw00000650


No.1 engine mount bracket removal note (4WD)

1.  Remove the front crossmember component and No.1 engine mount rubber as a single unit. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION.)

2.  Remove the exhaust manifold. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)

3.  Remove the transfer. (See TRANSFER REMOVAL/INSTALLATION [C66MX-R] (MTX).) (See TRANSFER REMOVAL/INSTALLATION [FW6AX-EL] (ATX).)

4.  Remove the No.1 engine mount bracket.


No.1 engine mount bracket installation note (4WD)

1.  Install the No.1 engine mount bracket and tighten the bolts in the order shown in the figure.

ac5uuw00000651

Tightening torque
131—153 N·m {14—15 kgf·m, 97—112 ft·lbf}*1 or 114—132 N·m {12—13 kgf·m, 85—97 ft·lbf}*2

*1: Applied VIN (assumed)

*2: Applied VIN (assumed)
JM6 KE1071*0 100001-142232
JM6 KE1071*0 142233-199999
JM6 KE1071*0 200001-202568
JM6 KE1071*0 202569-
JM8 KE4W7**# 100001-142232
JM8 KE4W7**# 142233-199999
JM8 KE4W7**# 200001-202568
JM8 KE4W7**# 202569-
JMZ KEK9760# 200001-207038
JMZ KEK9760# 207039-
KE1071 100001-142232
KE1071 142233-199999
KE1071 200001-202568
KE1071 202569-
JM0 KE10*1** 200001-202568
JM0 KE10*1** 202569-
JM6 KE10*1*0 100001-142232
JM6 KE10*1*0 142233-199999
JM6 KE10*1*0 200001-202568
JM6 KE10*1*0 202569-
JM7 KE897**# 100001-159294
JM7 KE897**# 159295-
JM8 KE4W***# 100001-142232
JM8 KE4W***# 142233-199999
JM8 KE4W***# 200001-202568
JM8 KE4W***# 202569-
JMZ KEK978*# 100001-142232
JMZ KEK978*# 142233-199999
JMZ KEK9*8Z# 200001-202568
JMZ KEK9*8Z# 202569-
JMZ KE*9*80# 200001-207038
JMZ KE*9*80# 207039-
KE10*1 100001-142232
KE10*1 142233-199999
KE10*1 200001-202568
KE10*1 202569-

2.  Install in the reverse order of removal.


No.1 engine mount rubber, bracket plate installation note (4WD)

1.  Install the No.1 engine mount rubber to the front crossmember.

2.  Tighten the front crossmember installation bolts. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION.)

3.  Remove the jack.

4.  Tighten the No.1 engine mount rubber installation bolts.

ac5uuw00000652

5.  Install in the reverse order of removal.


No.3 Engine Mount

Caution
•  Slots have been adopted for the No.3 engine mount installation holes. If the No.3 engine mount is deviated from the original position when installing the No.3 engine mount, engine noise or vibration could increase. Before removing the No.3 engine mount, place alignment marks on the No.3 engine mount and body so that they can be assembled to the same positions as before removal.

1.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

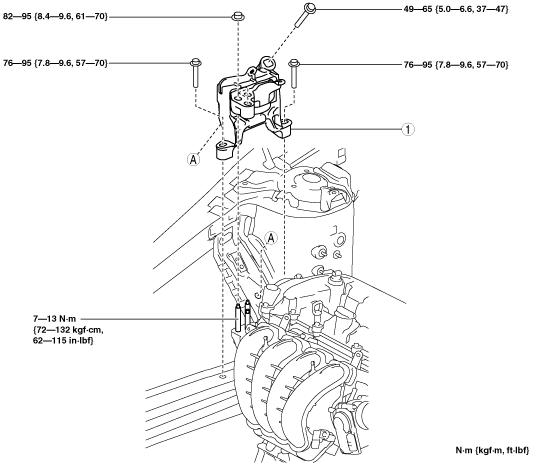

ac5wzw00002797

1
No.3 engine mount
(See No.3 engine mount removal note.)
(See No.3 engine mount installation note.)


No.3 engine mount removal note

1.  Remove the clips shown in the figure and set the ground cable aside.

ac5uuw00000654

2.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

Caution
•  To prevent deformation of the oil pan, support the engine using the following methods.
―  When using an engine lifter, insert rubber of appropriate size (approx. 20 mm {0.79 in} thickness) between the engine lifter and the oil pan to support the oil pan.
―  When using a garage jack, place rubber of appropriate size (approx. 20 mm {0.79 in} thickness) on a batten which is large enough to cover and support the oil pan.

3.  Before removing the No.3 engine mount, support the engine (oil pan) using a commercially available engine lifter or garage jack.

ac5wzw00006680

4.  Place alignment marks on the locations shown in the figure so that they can be assembled to the same positions as before removal.

ac5uuw00000655

Note
•  Paint so that the No.3 engine mount is framed on the body side and the outline of the nut is framed on the No.3 engine mount side.

5.  Remove the No.3 engine mount.


No.3 engine mount installation note

Note
•  When replacing the No.3 engine mount, place a mark at the same position as the one placed before removal.
•  If the No.3 engine mount nut is loosened, tighten the engine front cover stud bolts because they may have loosened.

1.  Tighten the engine front cover stud bolts.

ac5wzw00006681

Tightening torque
7—13 N·m {72—132 kgf·cm, 62—115 in·lbf}

2.  Temporarily tighten the No.3 engine mount installation bolts and nuts using the following procedure:

(1)  Align the alignment marks on the body side and No.3 engine mount, and temporarily tighten the bolts shown in the figure.

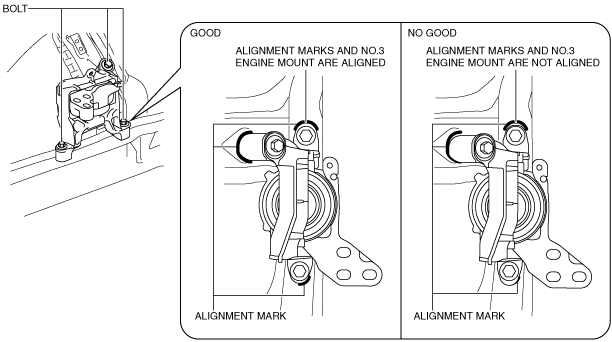

ac5wzw00006682
(2)  Temporarily tighten the nuts shown in the figure while aligning the alignment marks of the No.3 engine mount and nuts.
ac5wzw00006683
Note
•  If the alignment marks are not aligned, align the alignment marks while slightly moving the engine and temporarily tighten the nuts.

3.  Tighten the No.3 engine mount installation bolts and nuts in the order shown in the figure.

ac5uuw00000658

Tightening torque

No.

Tightening torque
1
76—95 N·m {7.8—9.6 kgf·m, 57—70 ft·lbf}
2
82—95 N·m {8.4—9.6 kgf·m, 61—70 ft·lbf}
3
49—65 N·m {5.0—6.6 kgf·m, 37—47 ft·lbf}

4.  Remove the engine lifter or garage jack.

5.  Install in the reverse order of removal.


No.4 Engine Mount

Caution
•  Slots have been adopted for the No.4 engine mount bracket installation holes. If the No.4 engine mount bracket is deviated from the original position when installing the No.4 engine mount bracket, engine noise or vibration could increase. Before removing the No.4 engine mount bracket, place alignment marks on the No.4 engine mount bracket so that they can be assembled to the same positions as before removal.

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)

2.  Remove the air cleaner, air hose and fresh air duct as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)

3.  Remove the battery tray and PCM component. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)

4.  Remove in the order indicated in the table.

5.  Install in the reverse order of removal.

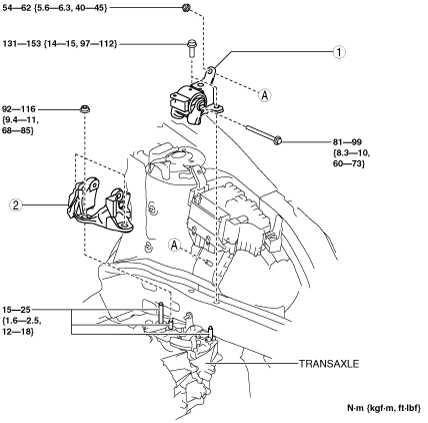

ac5wzw00002504

1
No.4 engine mount rubber
(See No.4 engine mount rubber removal note.)
(See No.4 engine mount rubber installation note.)
2
No.4 engine mount bracket
(See No.4 engine mount bracket removal note.)
(See No.4 engine mount bracket installation note.)


No.4 engine mount rubber removal note

1.  Remove the clips shown in the figure and set the wiring harness protector aside.

ac5uuw00000660

2.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

Caution
•  To prevent damage to the transaxle, support the transaxle using the following methods.
―  MTX: Support the clutch housing using a batten of appropriate size.
ac5uuw00000661
―  ATX: Place rubber of appropriate size (approx. 20 mm {0.79 in} thickness) on a batten which is large enough to cover and support the oil pan.
ac5uuw00000662

3.  Before removing the No.4 engine mount rubber, support the transaxle using a commercially available engine lifter or garage jack.

4.  Remove the No.4 engine mount rubber.


No.4 engine mount bracket removal note

1.  Remove the bolt shown in the figure and set the ground cable aside.

ac5wzw00005853

2.  Place alignment marks on the locations shown in the figure so that they can be assembled to the same positions as before removal.

ac5uuw00000664

Note
•  Paint so that the outline of the nut is framed on the bracket side.

3.  Remove the No.4 engine mount bracket.


No.4 engine mount bracket installation note

Note
•  When replacing the No.4 engine mount bracket, place a mark at the same position as the one placed before removal.
•  If the No.4 engine mount bracket nut is loosened, tighten the transaxle stud bolts because they may have loosened.

1.  Tighten the transaxle stud bolts.

ac5uuw00000665

Tightening torque
15—25 N·m {1.6—2.5 kgf·m, 12—18 ft·lbf}

2.  Align the alignment marks on the No.4 engine mount bracket and nuts, and temporarily tighten the nuts shown in the figure.

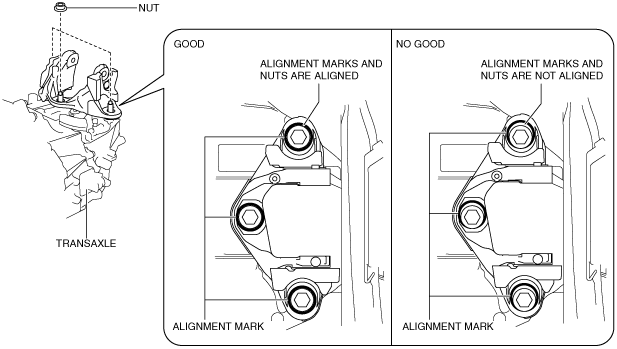

ac5wzw00006684

3.  Tighten the No.4 engine mount bracket installation nuts in the order shown in the figure.

ac5uuw00000667

Tightening torque
92—116 N·m {9.4—11 kgf·m, 68—85 ft·lbf}

4.  Install the ground cable to the No.4 engine mount bracket.

am6zzw00010072


No.4 engine mount rubber installation note

1.  Install the No.4 engine mount rubber and temporarily tighten the bolts and nut shown in the figure.

ac5uuw00000668

2.  Tighten the No.4 engine mount rubber installation bolts and nut in the order shown in the figure.

ac5uuw00000669

Tightening torque

No.

Tightening torque
1, 2
131—153 N·m {14—15 kgf·m, 97—112 ft·lbf}
3
54—62 N·m {5.6—6.3 kgf·m, 40—45 ft·lbf}
4
81—99 N·m {8.3—10 kgf·m, 60—73 ft·lbf}

3.  Remove the engine lifter or garage jack.

4.  Install in the reverse order of removal.
