DTC U0401:00 [DYNAMIC STABILITY CONTROL (DSC)]

id0402b2887900

DTC
U0401:00
Abnormal message from PCM
DETECTION CONDITION
•  Correct data cannot be received from PCM
FAIL-SAFE FUNCTION
•  Illuminates the TCS/DSC indicator light*1 and master warning light*1*2.
•  Tire pressure monitoring system warning light illuminates after flashes. (Not illuminated/flashed depending on malfunction content.)
•  Inhibits the TCS*3, DSC*3, roll over mitigation (ROM)*3, vehicle roll prevention function*3*4, hill launch assist (HLA)*3, TPMS*3, smart city brake support (SCBS)*2*3, and secondary collision reduction (SCR)*3 controls.
*1: Not illuminated depending on malfunction content.
*2: Vehicles with smart city brake support (SCBS)
*3: Enabled depending on malfunction content.
*4: ATX only
POSSIBLE CAUSE
•  DTCs are stored in the PCM
•  DTCs are stored in the TCM
•  Short to ground or open circuit in backup voltage circuit

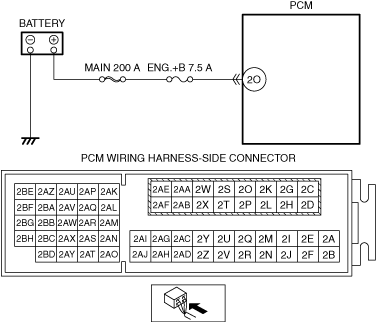

―  Short to ground in wiring harness between MAIN 200 A fuse and PCM terminal 2O
―  MAIN 200 A fuse and/or ENG.+B 7.5 A fuse malfunction
―  Open circuit in wiring harness between battery positive terminal and PCM terminal 2O
•  PCM malfunction
•  TCM malfunction

Diagnostic procedure

STEP

INSPECTION

ACTION
1
VERIFY DTCs
•  Switch the ignition to off.
•  Using the M-MDS, perform the DTC inspection for the PCM and TCM.
•  Are any DTCs detected?
Yes
Go to applicable DTC inspection.
(See DTC TABLE [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
(See DTC TABLE [SKYACTIV-D 2.2].)
(See ON-BOARD DIAGNOSTIC SYSTEM DTC TABLE [FW6A-EL, FW6AX-EL].)
(See ON-BOARD DIAGNOSTIC SYSTEM DTC TABLE [GW6A-EL, GW6AX-EL].)
No
Go to the next step.
2
INSPECT BACKUP VOLTAGE CIRCUIT FOR SHORT TO GROUND OR OPEN CIRCUIT
•  Reconnect all disconnected connectors.
•  Access the VPWR PID using the M-MDS.
•  Verify the VPWR PID value.
•  Is the VPWR PID value B+?
Yes
Go to the next step.
No
Inspect the MAIN 200 A fuse and ENG.+B 7.5 A fuse.
•  If the fuse is blown:
―  Repair or replace the wiring harness for a possible short to ground.
―  Replace the malfunctioning fuse.
•  If the fuse is deteriorated:
―  Replace the malfunctioning fuse.
•  If all fuses are normal:
―  Repair or replace the wiring harness for a possible open circuit.
Go to the next step.
3
DETERMINE IF MALFUNCTION IS PCM, TCM
•  Inspect the PCM.
•  Is the PCM normal?
Yes
Go to the next step.
No
Replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
(See PCM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
4
VERIFY THAT THE SAME DTC IS NOT PRESENT
•  Clear the DTCs from the memory.
•  Are the same DTCs present?
Yes
Repeat the inspection from Step 1.
•  If the malfunction recurs, replace the control valve body, then go to the next step
Go to the next step.
No
Go to the next step.
5
VERIFY IF OTHER DTCs DISPLAYED
•  Are any other DTCs displayed?
Yes
Go to the applicable DTC inspection.
(See ON-BOARD DIAGNOSIS [DYNAMIC STABILITY CONTROL (DSC)].)
No
DTC troubleshooting completed.
