DTC U3003:16, U3003:17 [FULL-AUTO AIR CONDITIONER]
id0702c1731000

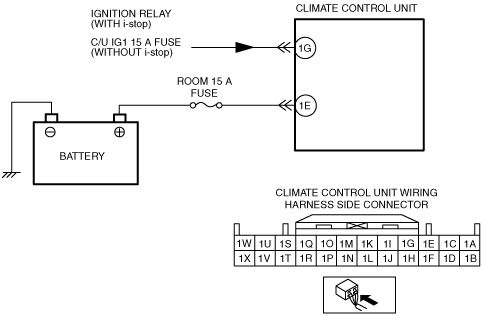

System malfunction location |
• U3003:16: Climate control unit power supply circuit voltage below threshold (B+, IG1) (10 V or less)
• U3003:17: Climate control unit power supply circuit voltage above threshold (B+, IG1) (17.3 V or more)
|
---|---|
Detection condition
|
• Climate control unit power supply voltage is other than 10.1—17.2 V
|
Fail-safe
|
—
|
Possible cause
|
• Generator system malfunction
• ROOM 15 A fuse malfunction
• Battery malfunction
• Climate control unit connector malfunction
• Open or short circuit to ground in wiring harness between battery positive terminal and climate control unit
• Climate control unit malfunction
|
![]() |
Diagnostic Procedure
STEP |
INSPECTION |
ACTION |
|
---|---|---|---|
1
|
INSPECT PCM DTC (INSPECT GENERATOR CIRCUIT)
• Switch the ignition off.
• Connect the M-MDS to the DLC-2.
• Perform the PCM DTC inspection using the M-MDS.
• Are any DTCs present?
|
Yes
|
Go to the applicable DTC inspection.
(See DTC TABLE [SKYACTIV-D 2.2].)
|
No
|
Go to the next step.
|
||
2
|
INSPECT FUSE
• Switch the ignition off.
• Disconnect the negative battery cable.
• Remove the ROOM 15 A fuse.
• Is the fuse normal?
|
Yes
|
Install the ROOM 15 A fuse, then go to the next step.
|
No
|
Replace the ROOM 15 A fuse, then go to Step 8.
|
||
3
|
INSPECT BATTERY
• Inspect the battery.
• Is the battery normal?
|
Yes
|
Go to the next step.
|
No
|
Replace/charge the battery, then go to Step 8.
|
||
4
|
INSPECT CLIMATE CONTROL UNIT
• Connect the negative battery cable.
• Switch the ignition ON (engine off or on).
• Inspect the climate control unit terminal 1E.
• Is voltage normal?
|
Yes
|
The system is normal at present.
Go to the step 8.
|
No
|
Go to the next step.
|
||
5
|
VERIFY CLIMATE CONTROL UNIT CONNECTOR CONDITION
• Switch the ignition off.
• Disconnect the negative battery cable.
• Disconnect the climate control unit connector.
• Inspect the connector and terminals (corrosion, damage, pin disconnection).
• Are the connector and terminals normal?
|
Yes
|
Go to the next step.
|
No
|
Repair/replace the connector or terminal.
After repair procedure, go to the next step.
|
||
6
|
INSPECT CLIMATE CONTROL UNIT POWER SUPPLY CIRCUIT FOR SHORT CIRCUIT TO GROUND
• Disconnect the climate control unit connector.
• Inspect for continuity between climate control unit terminal 1E and body ground.
• Is there continuity?
|
Yes
|
Repair the wiring harness, then go to Step 8.
|
No
|
Go to the next step.
|
||
7
|
INSPECT CLIMATE CONTROL UNIT POWER SUPPLY CIRCUIT FOR OPEN CIRCUIT
• Inspect for continuity between climate control unit terminal 1E and battery positive terminal.
• Is there continuity?
|
Yes
|
Go to the next step.
|
No
|
Repair the wiring harness, then go to the next step.
|
||
8
|
INSPECT CLIMATE CONTROL UNIT
• Reconnect the disconnected connectors.
• Connect the negative battery cable.
• Clear DTCs using the M-MDS.
• Perform the climate control unit DTC inspection using the M-MDS.
• Are DTCs U3003:16 or U3003:17 displayed?
|
Yes
|
Repeat the inspection from Step 1.
• If the malfunction does not recur, go to the next step.
• If the malfunction recurs, replace the climate control unit.
Go to the next step.
|
No
|
Go to the next step.
|
||
9
|
VERIFY THAT NO OTHER DTCs ARE PRESENT
• Verify other DTCs displayed.
• Are any other DTCs output?
|
Yes
|
Perform the corresponding DTC inspection.
|
No
|
DTC troubleshooting completed.
|
