DTC B126A:11 [REAR BODY CONTROL MODULE (RBCM)]

id0902p4014800

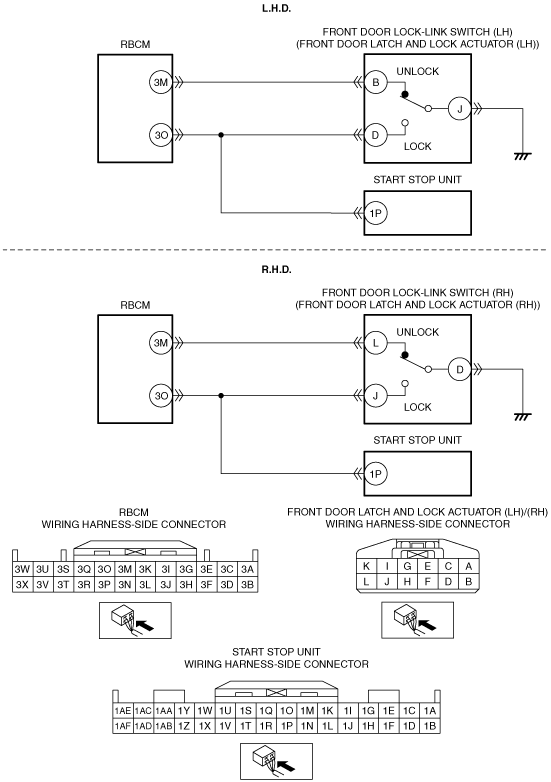

System malfunction location

Front door lock-link switch (driver's side) lock circuit malfunction

Detection condition

•  With the front door lock-link switch (driver's side) unlocked, the rear body control module (RBCM) detects a short to ground in the front door lock-link switch (driver's side) lock circuit.

Fail-safe

—

Possible cause

•  Front door latch and lock actuator (driver's side) connector or terminal malfunction

•  Front door lock-link switch (driver's side) malfunction

•  Start stop unit connector or terminal malfunction

•  Rear body control module (RBCM) connector or terminal malfunction

•  Short to ground in wiring harness between the following terminals:

―  L.H.D.:

•  Start stop unit terminal 1P and front door latch and lock actuator (LH) terminal D

•  Rear body control module (RBCM) terminal 3O and front door latch and lock actuator (LH) terminal D

―  R.H.D.:

•  Start stop unit terminal 1P and front door latch and lock actuator (RH) terminal J

•  Rear body control module (RBCM) terminal 3O and front door latch and lock actuator (RH) terminal J

•  Start stop unit malfunction

•  Rear body control module (RBCM) malfunction

System malfunction location	Front door lock-link switch (driver's side) lock circuit malfunction
Detection condition	• With the front door lock-link switch (driver's side) unlocked, the rear body control module (RBCM) detects a short to ground in the front door lock-link switch (driver's side) lock circuit.
Fail-safe	—
Possible cause	• Front door latch and lock actuator (driver's side) connector or terminal malfunction • Front door lock-link switch (driver's side) malfunction • Start stop unit connector or terminal malfunction • Rear body control module (RBCM) connector or terminal malfunction • Short to ground in wiring harness between the following terminals: ― L.H.D.: • Start stop unit terminal 1P and front door latch and lock actuator (LH) terminal D • Rear body control module (RBCM) terminal 3O and front door latch and lock actuator (LH) terminal D ― R.H.D.: • Start stop unit terminal 1P and front door latch and lock actuator (RH) terminal J • Rear body control module (RBCM) terminal 3O and front door latch and lock actuator (RH) terminal J • Start stop unit malfunction • Rear body control module (RBCM) malfunction

Diagnostic Procedure

Step	Inspection		Action
1	VERIFY REAR BODY CONTROL MODULE (RBCM) DTCs AGAIN • Clear rear body control module (RBCM) DTCs using the M-MDS. (See CLEARING DTC [REAR BODY CONTROL MODULE (RBCM)].) • Perform the DTC inspection for the rear body control module (RBCM) using the M-MDS. (See DTC INSPECTION [REAR BODY CONTROL MODULE (RBCM)].) • Is DTC B126A:11 displayed?	Yes	Go to the next step.
1		No	Go to Step 9.
2	INSPECT FRONT DOOR LATCH AND LOCK ACTUATOR (DRIVER'S DOOR) CONNECTOR • Switch the ignition to off. • Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) • Disconnect the front door latch and lock actuator (driver's side) connector. • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
2		No	Repair or replace the connector, then go to Step 8.
3	INSPECT FRONT DOOR LOCK-LINK SWITCH (DRIVER'S DOOR) • Inspect the front door lock-link switch (driver's door). (See DOOR LOCK-LINK SWITCH INSPECTION.) • Is the front door lock-link switch (driver's door) normal?	Yes	Go to the next step.
3		No	Replace the front door latch and lock actuator (driver's side), then go to Step 8. (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
4	INSPECT START STOP UNIT CONNECTOR CONDITION • Disconnect the start stop unit connector. • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
4		No	Repair or replace the connector, then go to Step 8.
5	INSPECT REAR BODY CONTROL MODULE (RBCM) CONNECTOR CONDITION • Disconnect the rear body control module (RBCM) connector. • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
5		No	Repair or replace the connector, then go to Step 8.
6	INSPECT FRONT DOOR LOCK-LINK SWITCH (DRIVER'S SIDE) CIRCUIT FOR SHORT TO GROUND • Verify that the rear body control module (RBCM) connector, start stop unit connector, and front door latch and lock actuator (driver's side) connector are disconnected. • Inspect for continuity between the following terminals (vehicle wiring harness side) and body ground. ― L.H.D.: • Front door latch and lock actuator (LH) terminal D ― R.H.D.: • Front door latch and lock actuator (RH) terminal J • Is there continuity?	Yes	Repair or replace the wiring harness which is shorted to ground, then go to Step 8.
6		No	Go to the next step.
7	INSPECT START STOP UNIT • Inspect the start stop unit. (See START STOP UNIT INSPECTION.) • Is the start stop unit normal?	Yes	Go to the next step.
7		No	Replace the start stop unit, then go to the next step. (See START STOP UNIT REMOVAL/INSTALLATION.)
8	VERIFY THAT REPAIRS HAVE BEEN COMPLETED • Reconnect all the disconnected connectors. • Reconnect the disconnected negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) • Clear rear body control module (RBCM) DTCs using the M-MDS. (See CLEARING DTC [REAR BODY CONTROL MODULE (RBCM)].) • Perform the DTC inspection for the rear body control module (RBCM) using the M-MDS. (See DTC INSPECTION [REAR BODY CONTROL MODULE (RBCM)].) • Is DTC B126A:11 displayed?	Yes	Repeat the inspection from Step 1. • If the malfunction recurs, replace the rear body control module (RBCM), then go to the next step. (See REAR BODY CONTROL MODULE (RBCM) REMOVAL/INSTALLATION.)
8		No	Go to the next step.
9	VERIFY IF OTHER DTCs DISPLAYED • Are any other DTCs displayed?	Yes	Repair the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [REAR BODY CONTROL MODULE (RBCM)].)
9		No	DTC troubleshooting completed.
