DTC P0616:24 [START STOP UNIT]

id0902p6022500

System malfunction location

Circuit malfunction on downstream side of starter relay

Detection condition

•  The start stop unit detects an open circuit in the starter relay downstream circuit continuously for 0.5 s or more for a continuous 5 times.

Fail-safe

—

Possible cause

•  DTCs are stored in the PCM.

•  PCM connector or terminal malfunction

•  Start stop unit connector or terminal malfunction

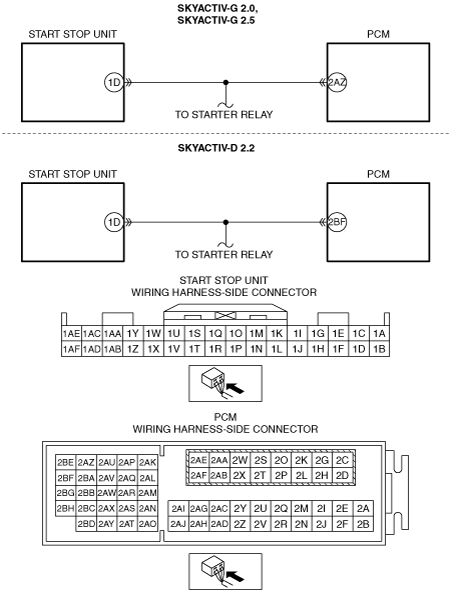

•  Open circuit in wiring harness between the following terminals:

―  Start stop unit terminal 1D—PCM terminal 2AZ (SKYACTIV-G 2.0, SKYACTIV-G 2.5)

―  Start stop unit terminal 1D—PCM terminal 2BF (SKYACTIV-D 2.2)

•  PCM malfunction

•  Start stop unit malfunction

System malfunction location	Circuit malfunction on downstream side of starter relay
Detection condition	• The start stop unit detects an open circuit in the starter relay downstream circuit continuously for 0.5 s or more for a continuous 5 times.
Fail-safe	—
Possible cause	• DTCs are stored in the PCM. • PCM connector or terminal malfunction • Start stop unit connector or terminal malfunction • Open circuit in wiring harness between the following terminals: ― Start stop unit terminal 1D—PCM terminal 2AZ (SKYACTIV-G 2.0, SKYACTIV-G 2.5) ― Start stop unit terminal 1D—PCM terminal 2BF (SKYACTIV-D 2.2) • PCM malfunction • Start stop unit malfunction

Diagnostic Procedure

Step	Inspection		Action
1	VERIFY PCM DTCs • Perform the DTC inspection for the PCM using the M-MDS. (See ON-BOARD DIAGNOSTIC TEST [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See ON-BOARD DIAGNOSTIC TEST [SKYACTIV-D 2.2].) • Is the DTC displayed?	Yes	Repair the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See DTC TABLE [SKYACTIV-D 2.2].)
1		No	Go to the next step.
2	INSPECT PCM CONNECTOR CONDITION • Switch the ignition to off. • Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) • Disconnect the PCM connector. • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
2		No	Repair or replace the connector, then go to Step 6.
3	INSPECT START STOP UNIT CONNECTOR CONDITION • Disconnect the start stop unit connector. • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
3		No	Repair or replace the connector, then go to Step 6.
4	INSPECT DOWNSTREAM SIDE OF STARTER RELAY CIRCUIT FOR OPEN CIRCUIT • Verify that the PCM and start stop unit connectors are disconnected. • Inspect the wiring harness for continuity between the following terminals (vehicle wiring harness side). ― Start stop unit terminal 1D—PCM terminal 2AZ (SKYACTIV-G 2.0, SKYACTIV-G 2.5) ― Start stop unit terminal 1D—PCM terminal 2BF (SKYACTIV-D 2.2) • Is there continuity?	Yes	Go to the next step.
4		No	Repair or replace the wiring harness which has an open circuit, then go to Step 6.
5	PERFORM DTC INSPECTION AND VERIFY IF MALFUNCTIONING PART IS PCM • Reconnect all the disconnected connectors. • Reconnect the disconnected negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) • Clear DTC for the start stop unit using the M-MDS. (See CLEARING DTC [START STOP UNIT].) • With the programmed remote transmitter in the vehicle, switch the ignition ON (engine off). • Depress the clutch pedal and release it. (MTX) • Operate the selector lever to positions from other than P or N and hold for 1 s or more, and perform this procedure 5 or more times. (ATX) • Perform the DTC inspection for the start stop unit using the M-MDS. (See DTC INSPECTION [START STOP UNIT].) • Is DTC P0616:24 displayed?	Yes	Replace the PCM, then go to the next step. (See PCM REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See PCM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
5		No	Go to Step 7.
6	VERIFY THAT REPAIRS HAVE BEEN COMPLETED • Reconnect all the disconnected connectors. • Reconnect the disconnected negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) • Clear DTC for the start stop unit using the M-MDS. (See CLEARING DTC [START STOP UNIT].) • Switch the ignition ON (engine off or on). • Depress the clutch pedal and release it. (MTX) • Operate the selector lever to positions from other than P or N and hold for 1 s or more, and perform this procedure 5 or more times. (ATX) • Perform the DTC inspection for the start stop unit using the M-MDS. (See DTC INSPECTION [START STOP UNIT].) • Is DTC P0616:24 displayed?	Yes	Repeat the inspection from Step 1. • If the malfunction recurs, replace the start stop unit, then go to the next step. (See START STOP UNIT REMOVAL/INSTALLATION.)
6		No	Go to the next step.
7	VERIFY IF OTHER DTCs DISPLAYED • Are any other DTCs displayed?	Yes	Repair the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [START STOP UNIT].)
7		No	DTC troubleshooting completed.
