SWITCH PANEL REMOVAL/INSTALLATION

id091700460400

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the car-navigation unit. (with car-navigation system) (See CAR-NAVIGATION UNIT REMOVAL/INSTALLATION.)

3.  Insert your hand from the lower side of the lower panel (without car-navigation system) or the area where the car-navigation unit was installed (with car-navigation system), press the switch panel in the direction of the arrow (1) shown in the figure and remove it while detaching hook A and B and hook C.

ac5wzw00002998

4.  Disconnect the cluster switch connector.

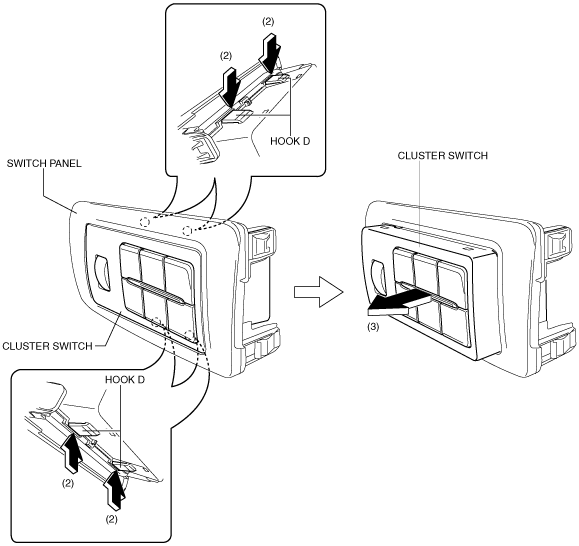

5.  Remove the cluster switch in the direction of the arrow (3) while detaching hooks D in the direction of the arrow (2).

ac5wzw00006451

6.  Install in the reverse order of removal.
