ADAPTIVE FRONT LIGHTING SYSTEM (AFS) OFF SWITCH INSPECTION

id091800112500

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the switch panel. (See SWITCH PANEL REMOVAL/INSTALLATION.)

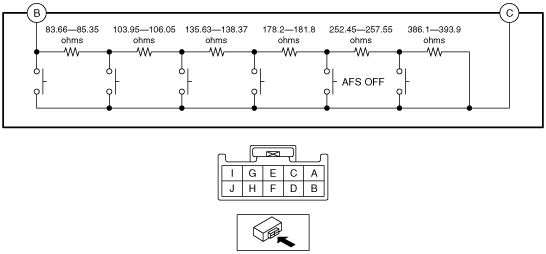

3.  Verify that the resistance between AFS OFF switches B and C is as indicated in the table.

ac5wzw00003007

ac5wzw00003008

•  If the resistance can be verified as indicated in the table, go to the next step.

•  If not as indicated in the table, replace the cluster switch.

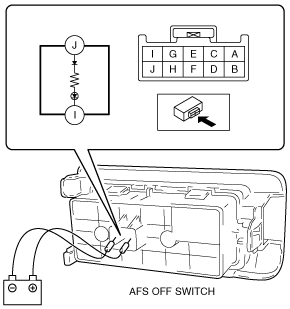

4.  Apply battery positive voltage to AFS OFF switch terminal J, and connect terminal I to ground.

ac5wzw00000111

5.  Verify that the LED illuminates.

•  If the LED does not illuminate, replace the cluster switch.
