ANTENNA FEEDER NO.1 INSPECTION

id092000812400


L.H.D. (With audio system)

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  A-pillar trim (RH) (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
(2)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
(3)  Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION.)

3.  Disconnect antenna feeder No.2.

ac5wzw00002935

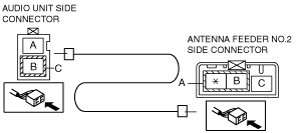

4.  Verify that the continuity between antenna feeder No.1 terminals is as indicated in the table.

ac5wzw00002936

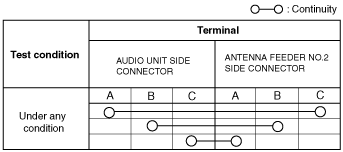

•  If not as indicated in the table, replace antenna feeder No.1.
ac5wzw00002937


L.H.D. (with car-navigation system)

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  A-pillar trim (RH) (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
(2)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
(3)  Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION.)
(4)  Center speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION.)
(5)  Front center speaker (with Bose®)/front center speaker (without Bose®) (See FRONT CENTER SPEAKER REMOVAL/INSTALLATION.)
(6)  Car-navigation unit (See CAR-NAVIGATION UNIT REMOVAL/INSTALLATION.)

3.  Disconnect the GPS antenna connector. (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION.)

4.  Disconnect antenna feeder No.2.

ac5wzw00002935

5.  Verify that the continuity between antenna feeder No.1 terminals is as indicated in the table.

ac5jjw00001098

•  If not as indicated in the table, replace antenna feeder No.1.
ac5wzw00002938


R.H.D. (with audio system)

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  A-pillar trim (RH) (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
(2)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
(3)  Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION.)

3.  Disconnect antenna feeder No.2.

ac5wzw00002935

4.  Verify that the continuity between antenna feeder No.1 terminals is as indicated in the table.

ac5wzw00002939

•  If not as indicated in the table, replace antenna feeder No.1.
ac5wzw00002937


R.H.D. (with car-navigation system)

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  A-pillar trim (RH) (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
(2)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
(3)  Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION.)
(4)  Center speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION.)
(5)  Front center speaker (with Bose®)/front center speaker (without Bose®) (See FRONT CENTER SPEAKER REMOVAL/INSTALLATION.)
(6)  Car-navigation unit (See CAR-NAVIGATION UNIT REMOVAL/INSTALLATION.)

3.  Disconnect the GPS antenna connector.

4.  Disconnect antenna feeder No.2.

ac5wzw00002935

5.  Verify that the continuity between antenna feeder No.1 terminals is as indicated in the table.

ac5wzw00002940

•  If not as indicated in the table, replace antenna feeder No.1.
ac5jjw00002386
