STEERING SWITCH REMOVAL/INSTALLATION

id092000822500

Warning

•  Handling the driver-side air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS.) (See AIR BAG SYSTEM SERVICE CAUTIONS.)

1.  Switch the ignition OFF (LOCK).

2.  Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

3.  Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

4.  Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

5.  Affix protective tape to the gaps between the steering wheel and cover as shown in the figure.

ac5wzw00006741

6.  Remove the screws. (Type A only)

Note

•  The steering wheel cover securing method varies depending on the vehicle production period.

―  Type A: Secured by screws, tabs, and pins

―  Type B: Secured by tabs and pins

7.  Using a tape-wrapped flathead screwdriver, press the cover tabs in the direction of the arrows shown in the figure to detach the cover tabs from the steering wheel.

ac5jjw00000933

8.  Insert the fastener remover into the clearance between the steering wheel and cover as shown in the figure.

ac5jjw00000934

9.  Move the fastener remover in the direction of the arrow shown in the figure and detach cover tab from the steering wheel.

10.  Remove the cover while detaching the pins from the steering wheel.

ac5jjw00000943

11.  While pressing the clip tabs in the direction of the arrows (1) shown in the figure, press the clip in the direction of the arrow (2) to detach the clip tabs from the steering wheel.

ac5jjw00000936

12.  Detach the clip.

13.  Warm up the shaded area shown in the figure and soften the hard plastic area of the steering wheel using a heat gun.

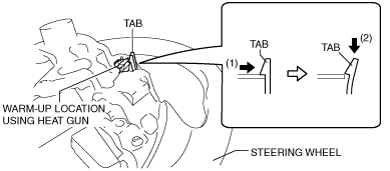

14.  While pressing the tabs of the steering switch in the direction of the arrows (1) shown in the figure, press the steering switch in the direction of the arrow (2) to detach the tabs of the steering switch from the steering wheel.

ac5wzw00007135

15.  Warm up the shaded area shown in the figure and soften the hard plastic area of the steering wheel using a heat gun.

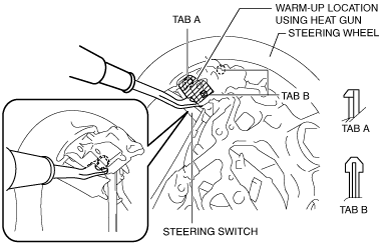

16.  Insert a fastener remover into the position shown in the figure.

ac5wzw00007136

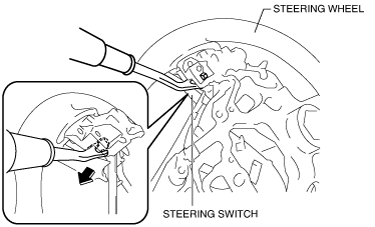

17.  Move the fastener remover straight in the direction shown in the figure and remove the tabs of the steering switch from the steering wheel.

Caution

•  When removing the pins of the steering switch, pull them out straight. If the fastener remover is moved at an angle, the pins could be damaged.

Note

•  Because the pins of the steering switch are installed to the hard plastic area of the steering wheel, the engagement is strong.

ac5uuw00002653

18.  Remove the steering switch while detaching the pin and tabs of the steering wheel.

ac5jjw00000944

19.  Affix protective tape shown in the figure.

ac5wzw00007137

20.  Warm up the shaded area shown in the figure and soften the hard plastic area of the steering wheel using a heat gun.

21.  Press the tab in the direction of arrow shown in the figure,detach it.

ac5wzw00007145

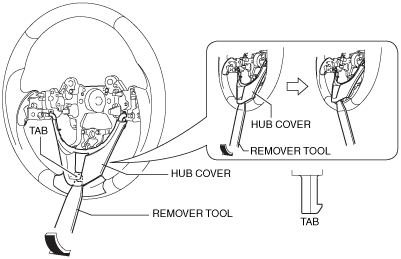

22.  Insert a plastic remover tool, move it in the direction of the arrow shown in the figure, detach the tabs.

ac5wzw00007141

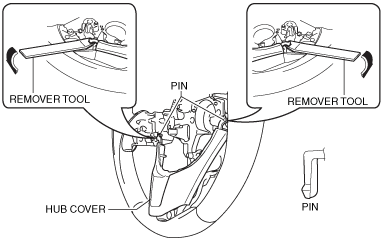

23.  Insert a remover tool, move it in the direction of the arrow shown in the figure, remove the pin.

ac5wzw00007140

24.  Remove the hub cover.

25.  Install in the reverse order of removal.
