DTC U1100:00 [PCM (SKYACTIV-D 2.2)]

id0102j5855900

DTC U1100:00

LIN communication: communication error to engine oil level sensor

DETECTION CONDITION

•  With the following conditions continued for 1.5 s, a communication error between the engine oil level sensor continues for 5 s or more.

―  Battery positive voltage: 10—16 V

―  Ignition is switched ON (engine off or on)

Diagnostic support note

•  This is a continuous monitor (other).

•  The check engine light does not illuminate.

•  FREEZE FRAME DATA/Snapshot data is available.

•  DTC is stored in the PCM memory.

FAIL-SAFE FUNCTION

•  Not applicable

POSSIBLE CAUSE

•  LIN communication line error between engine oil level sensor and PCM

•  Engine oil level sensor connector or terminal malfunction

•  Short to ground or open circuit in engine oil level sensor power supply circuit

―  Short to ground in wiring harness between ENGINE3 15 A and Engine oil level sensor terminal A

―  ENGINE3 15 A fuse malfunction

―  Open circuit in wiring harness between main relay terminal C and engine oil level sensor terminal A

•  PCM connector or terminal malfunction

•  Engine oil level sensor malfunction

•  PCM malfunction

DTC U1100:00	LIN communication: communication error to engine oil level sensor
DETECTION CONDITION	• With the following conditions continued for 1.5 s, a communication error between the engine oil level sensor continues for 5 s or more. ― Battery positive voltage: 10—16 V ― Ignition is switched ON (engine off or on) Diagnostic support note • This is a continuous monitor (other). • The check engine light does not illuminate. • FREEZE FRAME DATA/Snapshot data is available. • DTC is stored in the PCM memory.
FAIL-SAFE FUNCTION	• Not applicable
POSSIBLE CAUSE	• LIN communication line error between engine oil level sensor and PCM • Engine oil level sensor connector or terminal malfunction • Short to ground or open circuit in engine oil level sensor power supply circuit ― Short to ground in wiring harness between ENGINE3 15 A and Engine oil level sensor terminal A ― ENGINE3 15 A fuse malfunction ― Open circuit in wiring harness between main relay terminal C and engine oil level sensor terminal A • PCM connector or terminal malfunction • Engine oil level sensor malfunction • PCM malfunction

Diagnostic Procedure

Step

Inspection

Results

Action

1

RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION

Note

•  Recording can be facilitated using the screen capture function of the PC.

•  Record the freeze frame data/snap shot data.

—

Go to the next step.

2

VERIFY OTHER RELATED DTCs

•  Switch the ignition OFF, and then switch it ON (engine off).

•  Display the DTCs using the M-MDS.
(See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-D 2.2)].)

•  Has any DTC other than U1100:00 been stored?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [PCM (SKYACTIV-D 2.2)].)

No

Go to the next step.

3

INSPECT INSTALLATION CONDITION OF ENGINE OIL LEVEL SENSOR

•  Inspect the installation condition of the engine oil level sensor.

•  Is there any looseness or removal?

Yes

After installing the engine oil level sensor, go to Step 7.

(See ENGINE OIL LEVEL SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

No

Go to the next step.

4

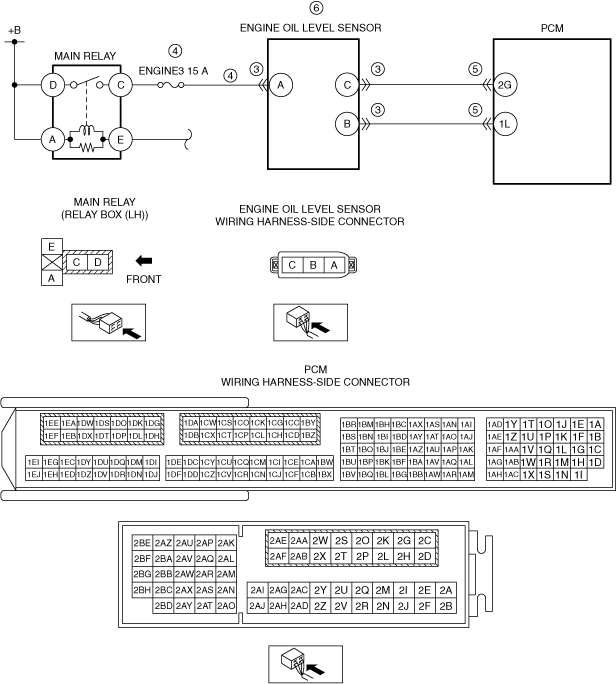

INSPECT ENGINE OIL LEVEL SENSOR POWER SUPPLY CIRCUIT FOR SHORT TO GROUND OR OPEN CIRCUIT

•  Verify that the engine oil level sensor connector is disconnected.

•  Switch the ignition ON (engine off).

Note

•  Another DTC may be stored by the PCM detecting an open circuit.

•  Measure the voltage at engine oil level sensor terminal A (vehicle wiring harness side).

•  Is the voltage B+?

Yes

Go to the next step.

No

Inspect the ENGINE3 15 A fuse.

•  If the fuse is blown:

―  Refer to the wiring diagram and verify if there is a common connector between main relay terminal C and engine oil sensor terminal A.

If there is a common connector:

•  Inspect the common connector and terminals for corrosion, damage, or disconnection and the common wiring harnesses for short to ground to determine the malfunctioning location.

•  Repair or replace the malfunctioning location.

If there is no common connector:

•  Repair or replace the wiring harness which is shorted to ground.

•  Replace the fuse.

•  If the fuse is damaged:

―  Replace the fuse.

•  If the fuse is normal:

―  Refer to the wiring diagram and verify if there is a common connector between main relay terminal C and engine oil level sensor terminal C.

If there is a common connector:

•  Inspect the common connector and terminals for corrosion, damage, or disconnection and the common wiring harnesses for an open circuit to determine the malfunctioning location.

•  Repair or replace the malfunctioning location.

If there is no common connector:

•  Repair or replace the wiring harness which has an open circuit.

Go to Step 7.

5

INSPECT PCM CONNECTOR CONDITION

•  Disconnect the PCM connector.

•  Inspect the connector engagement and connection condition, and inspect the terminals for damage, deformation, corrosion, or disconnection.

•  Is the connector normal?

Yes

Go to the next step.

No

Repair or replace the connector, then go to Step 7.

6

INSPECT ENGINE OIL LEVEL SENSOR

•  Inspect the engine oil level sensor.
(See ENGINE OIL LEVEL SENSOR INSPECTION [SKYACTIV-D 2.2].)

•  Is the engine oil level sensor normal?

Yes

Go to the next step.

No

Replace the engine oil-level sensor, then go to the next step.

(See ENGINE OIL LEVEL SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

7

VERIFY THAT REPAIRS HAVE BEEN COMPLETED

•  Reconnect all the disconnected connectors.

•  Refer to the [MEMORY CLEARING PROCEDURE] and clear the DTC.
(See CLEARING DTC [PCM (SKYACTIV-D 2.2)].)

•  Perform the KOER self-test.
(See KOEO/KOER SELF TEST [PCM (SKYACTIV-D 2.2)].)

•  Has DTC U1100:00 been recorded?

Yes

Repeat the inspection from Step 1.

•  If the malfunction recurs, replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

No

Go to the next step.

8

VERIFY OTHER DTCs

•  Has any other DTC or pending code been stored?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [PCM (SKYACTIV-D 2.2)].)

No

DTC troubleshooting completed.

Step	Inspection	Results	Action
1	RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION Note • Recording can be facilitated using the screen capture function of the PC. • Record the freeze frame data/snap shot data.	—	Go to the next step.
2	VERIFY OTHER RELATED DTCs • Switch the ignition OFF, and then switch it ON (engine off). • Display the DTCs using the M-MDS. (See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-D 2.2)].) • Has any DTC other than U1100:00 been stored?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [PCM (SKYACTIV-D 2.2)].)
2		No	Go to the next step.
3	INSPECT INSTALLATION CONDITION OF ENGINE OIL LEVEL SENSOR • Inspect the installation condition of the engine oil level sensor. • Is there any looseness or removal?	Yes	After installing the engine oil level sensor, go to Step 7. (See ENGINE OIL LEVEL SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
3		No	Go to the next step.
4	INSPECT ENGINE OIL LEVEL SENSOR POWER SUPPLY CIRCUIT FOR SHORT TO GROUND OR OPEN CIRCUIT • Verify that the engine oil level sensor connector is disconnected. • Switch the ignition ON (engine off). Note • Another DTC may be stored by the PCM detecting an open circuit. • Measure the voltage at engine oil level sensor terminal A (vehicle wiring harness side). • Is the voltage B+?	Yes	Go to the next step.
4		No	Inspect the ENGINE3 15 A fuse. • If the fuse is blown: ― Refer to the wiring diagram and verify if there is a common connector between main relay terminal C and engine oil sensor terminal A. If there is a common connector: • Inspect the common connector and terminals for corrosion, damage, or disconnection and the common wiring harnesses for short to ground to determine the malfunctioning location. • Repair or replace the malfunctioning location. If there is no common connector: • Repair or replace the wiring harness which is shorted to ground. • Replace the fuse. • If the fuse is damaged: ― Replace the fuse. • If the fuse is normal: ― Refer to the wiring diagram and verify if there is a common connector between main relay terminal C and engine oil level sensor terminal C. If there is a common connector: • Inspect the common connector and terminals for corrosion, damage, or disconnection and the common wiring harnesses for an open circuit to determine the malfunctioning location. • Repair or replace the malfunctioning location. If there is no common connector: • Repair or replace the wiring harness which has an open circuit. Go to Step 7.
5	INSPECT PCM CONNECTOR CONDITION • Disconnect the PCM connector. • Inspect the connector engagement and connection condition, and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
5		No	Repair or replace the connector, then go to Step 7.
6	INSPECT ENGINE OIL LEVEL SENSOR • Inspect the engine oil level sensor. (See ENGINE OIL LEVEL SENSOR INSPECTION [SKYACTIV-D 2.2].) • Is the engine oil level sensor normal?	Yes	Go to the next step.
6		No	Replace the engine oil-level sensor, then go to the next step. (See ENGINE OIL LEVEL SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
7	VERIFY THAT REPAIRS HAVE BEEN COMPLETED • Reconnect all the disconnected connectors. • Refer to the [MEMORY CLEARING PROCEDURE] and clear the DTC. (See CLEARING DTC [PCM (SKYACTIV-D 2.2)].) • Perform the KOER self-test. (See KOEO/KOER SELF TEST [PCM (SKYACTIV-D 2.2)].) • Has DTC U1100:00 been recorded?	Yes	Repeat the inspection from Step 1. • If the malfunction recurs, replace the PCM, then go to the next step. (See PCM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
7		No	Go to the next step.
8	VERIFY OTHER DTCs • Has any other DTC or pending code been stored?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [PCM (SKYACTIV-D 2.2)].)
8		No	DTC troubleshooting completed.
