49 E033 101
Dust cover installer [SKYACTIV-G 2.0]
49 S033 101
Dust cover installer [SKYACTIV-G 2.5]
REAR OIL SEAL REPLACEMENT [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]
id0110m1800900
Special Service Tool (SST)
|
49 E033 101
Dust cover installer [SKYACTIV-G 2.0]
|
|
49 S033 101
Dust cover installer [SKYACTIV-G 2.5]
|
|
Replacement Part
|
Rear oil seal
Quantity: 1
Location of use: Cylinder block
|
Oil and Chemical Type
|
Engine oil
Type: Recommended oil
|
1. Remove the transaxle. (See MANUAL TRANSAXLE REMOVAL/INSTALLATION [C66M-R] (MTX, 2WD).) (See MANUAL TRANSAXLE REMOVAL/INSTALLATION [C66MX-R] (MTX, 4WD).) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [FW6A-EL] (ATX, 2WD).) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [FW6AX-EL] (ATX, 4WD).)
2. Remove the flywheel (MTX) or the drive plate (ATX). (See CLUTCH UNIT REMOVAL/INSTALLATION [C66M-R, C66MX-R] (MTX).) (See DRIVE PLATE REMOVAL/INSTALLATION [FW6A-EL, FW6AX-EL] (ATX).)
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
ac5uuw00000503
|
|
1
|
Rear oil seal
(See Rear Oil Seal Removal Note.)
|
Rear Oil Seal Removal Note
1. Cut the rear oil seal lip using a utility knife.
2. Remove the rear oil seal using a flathead screwdriver with the tip protected by a clean cloth to prevent damage to the crankshaft.
am3uuw00008834
|
Rear Oil Seal Installation Note
1. Apply clean engine oil to the inner surface of a new rear oil seal.
2. Insert the rear oil seal into the cylinder block by hand.

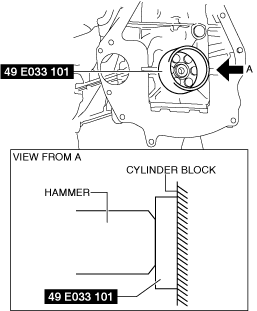

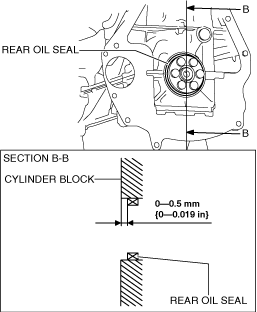

3. Tap the rear oil seal in evenly using the SST and a hammer.
SKYACTIV-G 2.0
am3uuw00008835
|

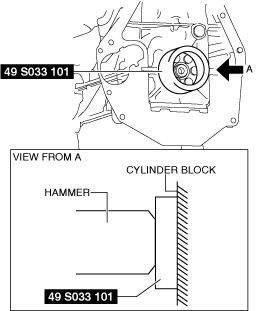

SKYACTIV-G 2.5
bpe1ze00000056
|
am3uuw00008836
|
