AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [FW6A-EL]


id0517h21172h1

Special Service Tool (SST)

1.  : Mazda SST number
2.  : Global SST number
1: 49 C017 5A0
2: –

Engine support set
1: 49 UN30 3050
2: 303–050

Engine lifting bracket
1: 49 L017 5A0
2: –

Support hanger

Caution
•  If the automatic transaxle has been replaced, perform TCM configuration. (See TCM CONFIGURATION [FW6A-EL, FW6AX-EL].)
•  If the automatic transaxle has been replaced, perform initial learning. (See INITIAL LEARNING [FW6A-EL, FW6AX-EL].)
•  Performing the following procedures could cause an open circuit in the front ABS wheel-speed sensor wiring harness if it is pulled by mistake. Before servicing, disconnect the front ABS wheel-speed sensor and set it aside so that the wiring harness will not be pulled by mistake.
•  Secure the steering wheel using tape or a cable to prevent the steering shaft from rotating after disconnecting the steering shaft. If the steering wheel rotates after the steering shaft and the steering gear and linkage are disconnected, the internal parts of the clock spring could be damaged.

Removal

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See PLUG HOLE PLATE REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

3.  Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

4.  Remove the battery. (See BATTERY REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See BATTERY REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

5.  Remove the PCM component. (See PCM REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See PCM REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

6.  Remove the battery tray. (See BATTERY REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See BATTERY REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

7.  Remove the splash shield (LH). (See SPLASH SHIELD REMOVAL/INSTALLATION.)

8.  Disconnect the electric AT oil pump connector. (With i-stop)

ac5wzw00009167

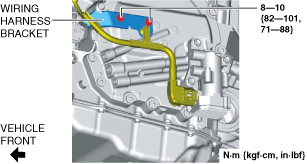

9.  Remove the bolts and set the wiring harness and wiring harness bracket in a place which does not interfere with servicing. (With i-stop)

ac5wzw00009168

10.  Disconnect the control valve body connector.

Caution
•  Make sure that your hand does not touch the terminal as the connector terminal could be damaged.
•  Water or foreign matter entering the connector can cause a poor connection or corrosion. Be careful not to allow water droplets or foreign matter to get on the connector when disconnecting it.
ac5uuw00000223

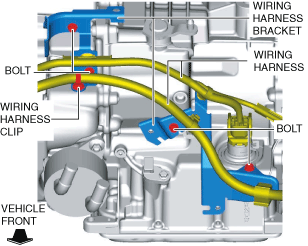

11.  Remove the wiring harness clip and bolts, and set the wiring harnesses and wiring harness brackets in a place which does not interfere with servicing.

ac5uuw00006415

12.  Disconnect the ground cable.

ac5uuw00006416

13.  Disconnect the selector cable from the transaxle. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

14.  Remove the selector cable bracket.

ac5uuw00006418

15.  Remove the bracket.

ac5uuw00006419

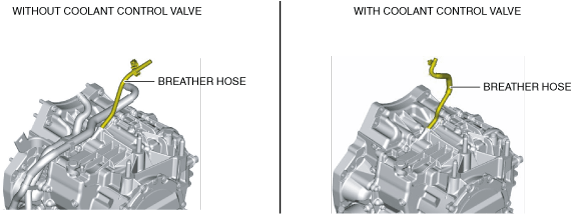

16.  Disconnect the breather hose from the transaxle.

ac5wzw00011777

17.  Remove the joint cover. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

18.  Disconnect the intermediate shaft from the steering gear and linkage. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

19.  Remove the front tires. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

20.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

21.  Remove the front under cover No.1. (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.)

22.  Disconnect the wiring harness from the front crossmember. (With i-ELOOP)

ac5wzw00010738

23.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See ENGINE COOLANT REPLACEMENT [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

24.  Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [FW6A-EL, FW6AX-EL].)

25.  For SKYACTIV-G 2.0 (Without coolant control valve) or SKYACTIV-G 2.5 (Without coolant control valve) vehicles, perform the following procedure.

(1)  Disconnect the oil cooler from the transaxle with the hose connected. (Except Automatic Transaxle Replacement) (See OIL COOLER REMOVAL/INSTALLATION [FW6A-EL, FW6AX-EL].)
(2)  Disconnect the water hose from the oil cooler. (Automatic Transaxle Replacement) (See OIL COOLER REMOVAL/INSTALLATION [FW6A-EL, FW6AX-EL].)

26.  For SKYACTIV-G 2.0 (With coolant control valve) or SKYACTIV-G 2.5 (With coolant control valve) vehicles, perform the following procedure.

(1)  Remove the oil cooler and water hose component as a single unit. (Except Automatic Transaxle Replacement) (See OIL COOLER REMOVAL/INSTALLATION [FW6A-EL, FW6AX-EL].)
(2)  Remove the water hose component. (Automatic Transaxle Replacement) (See OIL COOLER REMOVAL/INSTALLATION [FW6A-EL, FW6AX-EL].)
(3)  Remove the lower radiator hose component. (See RADIATOR REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See RADIATOR REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See COOLANT CONTROL VALVE REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See COOLANT CONTROL VALVE REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

27.  Remove the starter. (See STARTER REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See STARTER REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

28.  Remove the blind cover.

am3uuw00008313

29.  Hold the crankshaft pulley to prevent drive plate from rotating.

am3uuw00002582

30.  Remove the torque converter nuts from the starter installation hole.

ac5uuw00000225

31.  Disconnect the front ABS wheel-speed sensors from the steering knuckles. (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.)

32.  Disconnect the clips securing the brake hose from the front shock absorbers. (See FRONT BRAKE HOSE REMOVAL/INSTALLATION [WITH SINGLE PISTON FLOATING CALIPER].)

33.  Disconnect the tie-rod end ball joints from the steering knuckles. (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION.)

34.  Disconnect the front lower arms from the steering knuckles. (See FRONT LOWER ARM REMOVAL/INSTALLATION.)

35.  Disconnect the front stabilizer control links from the front stabilizer. (See FRONT STABILIZER REMOVAL/INSTALLATION.)

36.  Disconnect the front drive shaft (LH) from the transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

37.  Disconnect the front drive shaft (RH) from the transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

38.  Remove the front crossmember component and No.1 engine mount rubber as a single unit. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION.)

39.  Remove the No.1 engine mount bracket from the transaxle.

ac5uuw00006421

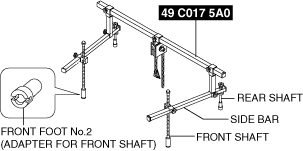

40.  Install the SST using the following procedures.

ac5uuw00006422

Caution
•  Refer to the SST instruction manual for the basic handing procedure.
(1)  Install one front foot No.2 to each of the left and right front shafts of the SST.
(2)  Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)
(3)  Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION.)
(4)  Remove the windshield wiper motor and link. (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION.)
(5)  Remove the keyless beeper. (With advanced keyless entry system) (See KEYLESS BEEPER REMOVAL/INSTALLATION.)
(6)  Remove the cowl panel. (See COWL PANEL REMOVAL/INSTALLATION.)
(7)  Protect the positions shown in the area using tape.
ac5wzw00002884
(8)  To enable installation of the SST, disconnect the clip shown in the figure and set the wiring harness aside. (SKYACTIV-G 2.0, SKYACTIV-G 2.5 (Without cylinder deactivation))
ac5uuw00002994

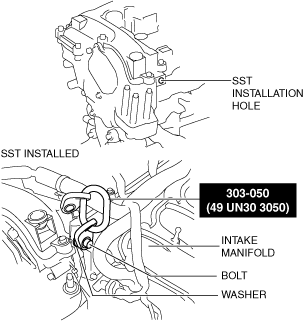

(9)  Install the SST using a bolt with part number 99794 1025 or an M10—1.25, length 25 mm {0.98 in} bolt, and a washer as shown in the figure.

Engine front side

ac5uuw00006423
Tightening torque
38—51 N·m {3.9—5.2 kgf·m, 29—37 ft·lbf}

Engine rear side

ac5uuw00002996
Tightening torque
38—51 N·m {3.9—5.2 kgf·m, 29—37 ft·lbf}

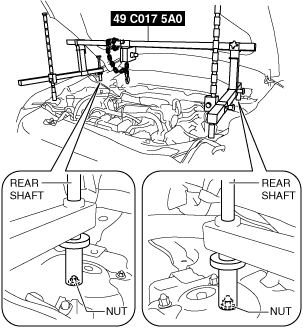

(10)  As shown in the figure, set the rear shafts of the SST to the left and right front shock absorber nuts.
ac5uuw00001579

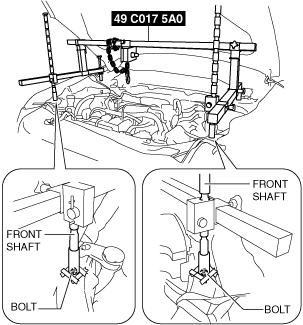

(11)  As shown in the figure, set the front shafts of the SST to the left and right bolts.
ac5wzw00012855
(12)  To prevent interference of the SST with the hose when assembling the SST (49 L017 5A0), disconnect the hose clip from the bracket shown in the figure and set the fuel hose and vacuum hose aside.
ac5wzw00011944
(13)  Install the SST (49 L017 5A0) to the SST (49 C017 5A0) as shown in the figure.
ac5uuw00006424

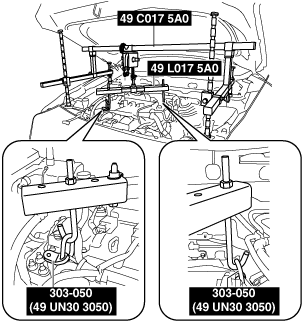

(14)  Install the SST (49 L017 5A0) to the SST (49 UN30 3050) with the hook of the SST (49 L017 5A0) facing outward.
ac5uuw00006425
(15)  Adjust the height of the left and right side bars so that they are leveled, then tighten each part of the SST.
(16)  Apply tension to the chain to secure the engine.

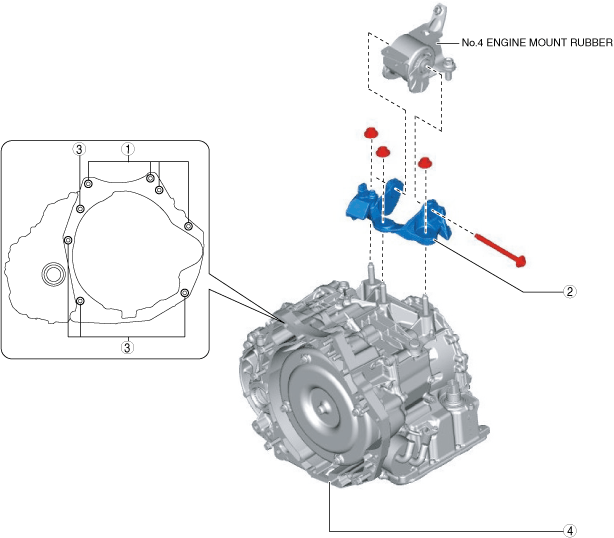

41.  Remove in the order shown in the figure.

Warning
•  Improperly jacking a transaxle is dangerous. It can slip off the jack and may cause serious injury.
Caution
•  To prevent the torque converter and transaxle from separating, remove the transaxle without tilting it toward the torque converter.
ac5uuw00006426

1
Transaxle mounting bolts (upper side)
2
No.4 engine mount bracket
3
Transaxle mounting bolts (lower side)
4
Transaxle


No.4 Engine mount bracket removal note

Caution
•  A slot has been adopted for the No.4 engine mount bracket installation hole. If the No.4 engine mount bracket is deviated from the original position when installing the No.4 engine mount, engine noise or vibration could increase. When removing the No.4 engine mount, place alignment marks on the No.4 engine mount bracket so that they can be assembled to the same positions as before removal.

1.  Place alignment marks on the locations shown in the figure so that they can be assembled to the same positions as before removal.

ac5uuw00006427

Note
•  Paint so that the outline of the nut is framed on the bracket side.

2.  Remove the No.4 engine mount bracket.


Transaxle mounting bolt removal note

Warning
•  Remove the transaxle carefully, holding it steady. If the transaxle falls it could be damaged or cause injury.

1.  Adjust the SST and lean the engine toward the transaxle.

ac5uuw00006424

2.  Support the transaxle on a jack.

am3uuw00002584

3.  Remove the transaxle mounting bolts (lower side).

4.  Remove the transaxle.


Installation

Caution
•  Verify that the torque converter stud bolts are inserted into the drive plate bolt holes, and install the transaxle installation bolts. Otherwise, the drive plate could be damaged.

1.  Verify that the torque converter stud bolts are inserted into the drive plate bolt holes from the starter installation hole.

am3uuw00008315

2.  Install the transaxle mounting bolts.

am3uuw00009181

Tightening torque
38—52 N·m {3.9—5.3 kgf·m, 29—38 ft·lbf}

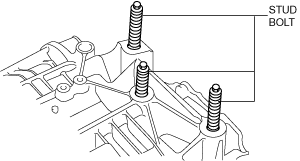

3.  Tighten the stud bolts for the transaxle.

ac5uuw00001585

Note
•  If the No.4 engine mount bracket nut is loosened, tighten the stud bolts for the transaxle because they may be loosened.
Tightening torque
15—25 N·m {1.6—2.5 kgf·m, 12—18 ft·lbf}

4.  Install the No.4 engine mount bracket to No.4 engine mount rubber, and temporarily tighten the installation bolt.

ac5uuw00006428

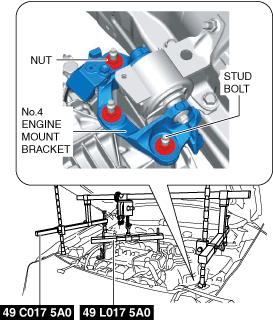

5.  Lift up the transaxle using the SSTs, pass the transaxle stud bolts through the No.4 engine mount bracket, and temporarily tighten the No.4 engine mount bracket installation nuts.

ac5uuw00006429

6.  Install the No.1 engine mount bracket, and tighten the installation bolts in the order shown in the figure.

ac5uuw00006430

Tightening torque
84—98 N·m {8.6—9.9 kgf·m, 62—72 ft·lbf}

7.  Install the front crossmember component and No.1 engine mount rubber as a single unit. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION.)

8.  Temporarily tighten the No.1 engine mount rubber installation bolts.

ac5uuw00006431

9.  Align the positions of the No.4 engine mount bracket installation nuts with the No.4 engine mount bracket.

ac5uuw00006432

10.  Tighten the No.4 engine mount bracket installation nuts and bolt in the order shown in the figure.

ac5uuw00006433

No.

Tightening torque

1, 2, 3
92—116 N·m {9.4—11 kgf·m, 69—85 ft·lbf}
4
81—99 N·m {8.3—10 kgf·m, 60—73 ft·lbf}

11.  Remove the SST (49 C017 5A0, 49 L017 5A0).

12.  Tighten the No.1 engine mount rubber installation bolts in the order shown in the figure.

ac5uuw00006434

No.

Tightening torque

1
141—172 N·m {15—17 kgf·m, 104—126 ft·lbf}
2
130—164 N·m {14—16 kgf·m, 96—120 ft·lbf}

13.  Connect the hose clip to the bracket shown in the figure.

ac5wzw00011944

14.  Connect the clip shown in the figure. (SKYACTIV-G 2.0, SKYACTIV-G 2.5 (Without cylinder deactivation))

ac5uuw00002994

15.  Install the cowl panel. (See COWL PANEL REMOVAL/INSTALLATION.)

16.  Install the keyless beeper. (With advanced keyless entry system) (See KEYLESS BEEPER REMOVAL/INSTALLATION.)

17.  Install the windshield wiper motor and link. (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION.)

18.  Install the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION.)

19.  Install the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

20.  Fix the crankshaft pulley to lock the torque converter against rotation.

am3uuw00002582

Caution
•  After temporarily tightening the torque converter installation nut uniformly, tighten it to the specified torque.

21.  Tighten the torque converter installation nut.

ac5uuw00000225

Tightening torque
41—54 N·m {4.2—5.5 kgf·m, 31—39 ft·lbf}

22.  Install the blind cover.

am3uuw00008313

23.  Install the starter. (See STARTER REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See STARTER REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

24.  Connect the front drive shaft (RH) to the transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

25.  Connect the front drive shaft (LH) to the transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

26.  Connect the front stabilizer control links to the front stabilizer. (See FRONT STABILIZER REMOVAL/INSTALLATION.)

27.  Connect the front lower arms to the steering knuckles. (See FRONT LOWER ARM REMOVAL/INSTALLATION.)

28.  Connect the tie-rod end ball joints to the steering knuckles. (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION.)

29.  Connect the clips securing the brake hose to the front shock absorbers. (See FRONT BRAKE HOSE REMOVAL/INSTALLATION [WITH SINGLE PISTON FLOATING CALIPER].)

30.  Connect the front ABS wheel-speed sensors to the steering knuckles. (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.)

31.  For SKYACTIV-G 2.0 (Without coolant control valve) or SKYACTIV-G 2.5 (Without coolant control valve) vehicles, perform the following procedure.

(1)  Connect the water hose to the oil cooler. (Automatic Transaxle Replacement) (See OIL COOLER REMOVAL/INSTALLATION [FW6A-EL, FW6AX-EL].)
(2)  Connect the oil cooler to the transaxle with the hose connected. (Except Automatic Transaxle Replacement) (See OIL COOLER REMOVAL/INSTALLATION [FW6A-EL, FW6AX-EL].)

32.  For SKYACTIV-G 2.0 (With coolant control valve) or SKYACTIV-G 2.5 (With coolant control valve) vehicles, perform the following procedure.

(1)  Install the lower radiator hose component. (See RADIATOR REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See RADIATOR REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See COOLANT CONTROL VALVE REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See COOLANT CONTROL VALVE REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
(2)  Install the water hose component. (Automatic Transaxle Replacement) (See OIL COOLER REMOVAL/INSTALLATION [FW6A-EL, FW6AX-EL].)
(3)  Install the oil cooler and water hose component as a single unit. (Except Automatic Transaxle Replacement) (See OIL COOLER REMOVAL/INSTALLATION [FW6A-EL, FW6AX-EL].)

33.  Connect the wiring harness to the front crossmember. (With i-ELOOP)

ac5wzw00011203

34.  Install the front under cover No.1. (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.)

35.  Install the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

36.  Install the front tires. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

37.  Connect the intermediate shaft to the steering gear and linkage. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

38.  Install the joint cover. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

39.  Connect the breather hose to the transaxle.

ac5wzw00011777

40.  Install the bracket to the transaxle and the exhaust manifold using the following procedure.

ac5uuw00006435

(1)  Tighten the bolt A.
8—10 N·m {82—101 kgf·cm, 71—88 in·lbf}
(2)  Temporarily tighten the bolt B and C.
(3)  Tighten the bolt B.
38—51 N·m {3.9—5.2 kgf·m, 29—37 ft·lbf}
(4)  Tighten the bolt C.
38—51 N·m {3.9—5.2 kgf·m, 29—37 ft·lbf}

41.  Install the selector cable bracket.

ac5uuw00003158

42.  Connect the selector cable to the transaxle. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

43.  Connect the ground cable to the No.4 engine mount bracket.

ac5uuw00006436

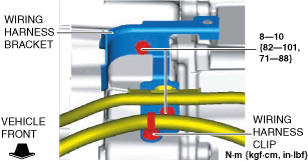

44.  Install the wiring harness clip and wiring harness bracket.

ac5uuw00006437

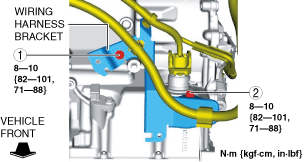

45.  Tighten the wiring harness bracket installation bolts in the order shown in the figure.

ac5uuw00006438

46.  Connect the control valve body connector.

ac5uuw00000223

Caution
•  Make sure that your hand does not touch the terminal as the connector terminal could be damaged.
•  Verify that there is no fluid or foreign matter adhering to the connector before connecting the connector.
•  Insert the connector straight as the connector terminal could be damaged.
•  Rotate the connector lever until a click is heard.

47.  Install the wiring harness bracket. (With i-stop)

ac5wzw00009169

48.  Connect the electric AT oil pump connector. (With i-stop)

ac5wzw00009167

49.  Install the splash shield. (See SPLASH SHIELD REMOVAL/INSTALLATION.)

50.  Install the battery tray. (See BATTERY REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See BATTERY REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

51.  Install the PCM component. (See PCM REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See PCM REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

52.  Install the battery. (See BATTERY REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See BATTERY REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

53.  Install the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

54.  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

55.  Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See ENGINE COOLANT REPLACEMENT [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

56.  Add the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [FW6A-EL, FW6AX-EL].)

57.  Install the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See PLUG HOLE PLATE REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

58.  Perform the “TCM configuration” (Automatic transaxle replacement). (See TCM CONFIGURATION [FW6A-EL, FW6AX-EL].)

59.  Perform the “Initial Learning” (Automatic transaxle Replacement). (See INITIAL LEARNING [FW6A-EL, FW6AX-EL].)

60.  Perform the “Mechanical System Test”. (See MECHANICAL SYSTEM TEST [FW6A-EL, FW6AX-EL].)
