OIL PAN REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]

id0111m2800200

Oil and Chemical Type

Warning

•  Hot engines and engine oil can cause severe burns. Turn off the engine and wait until it and the engine oil have cooled.

•  A vehicle that is lifted but not securely supported on safety stands is dangerous. It can slip or fall, causing death or serious injury. Never work around or under a lifted vehicle if it is not securely supported on safety stands.

•  Continuous exposure to USED engine oil has caused skin cancer in laboratory mice. Protect your skin by washing with soap and water immediately after working with engine oil.

Caution

•  When installing the oil pan, refer to the Oil Pan Installation Note and apply the silicone sealant correctly. If the silicone sealant application position is incorrect or there is any break in the application track, engine oil leakage will occur due to a poor seal.

1.  Turn the steering wheel completely to the right.

2.  Disconnect the negative battery terminal. (With engine oil level sensor) (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

4.  Remove the front splash shield (RH). (See SPLASH SHIELD REMOVAL/INSTALLATION.)

5.  Drain the engine oil. (See ENGINE OIL REPLACEMENT [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

6.  Remove in the order indicated in the table.

7.  Install in the reverse order of removal.

8.  Refill with the specified type and amount of the engine oil. (See ENGINE OIL REPLACEMENT [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

9.  Start the engine and confirm that there is no oil leakage.

•  If there is oil leakage, repair or replace the applicable part.

10.  Inspect the oil level. (See ENGINE OIL LEVEL INSPECTION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

Without engine oil level sensor (SKYACTIV-G 2.5)

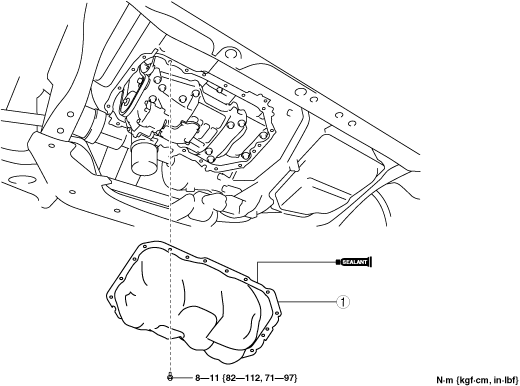

ac5uuw00003084

1	Oil pan (See Oil Pan Removal Note.) (See Oil Pan Installation Note.)

With engine oil level sensor (SKYACTIV-G 2.0)

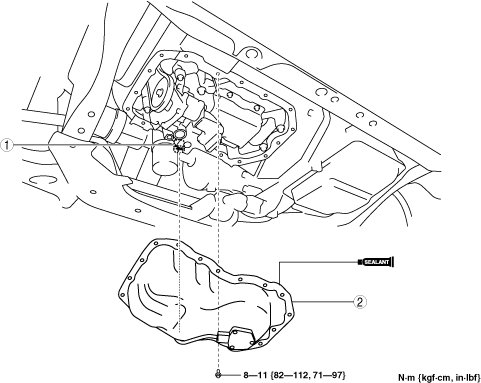

ac5wzw00013551

1	Emission wiring harness connector (See Emission Wiring Harness Connector Removal Note.)
2	Oil pan, engine oil level sensor and short-cord component (See Oil Pan Removal Note.) (See Oil Pan Installation Note.)

With engine oil level sensor (SKYACTIV-G 2.5)

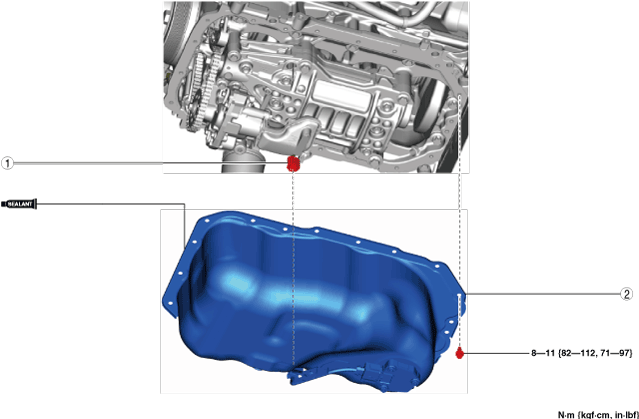

ac9uuw00008416

1	Emission wiring harness connector (See Emission Wiring Harness Connector Removal Note.)
2	Oil pan, engine oil level sensor and short-cord component (See Oil Pan Removal Note.) (See Oil Pan Installation Note.)

Emission Wiring Harness Connector Removal Note

Caution

•  Cover the emission wiring harness connector and short-cord connector using tape to prevent engine oil from adhering to the connector terminal.

1.  Disconnect the emission wiring harness connector.

ac5wzw00012156

Oil Pan Removal Note

1.  Remove the oil pan using a separator tool.

am6zzw00002303

2.  When replacing the oil pan, remove the short-cord. (With engine oil level sensor) (See ENGINE OIL LEVEL SENSOR REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

Oil Pan Installation Note

1.  When replacing the oil pan, install the short-cord and a new engine oil level sensor. (With engine oil level sensor) (See ENGINE OIL LEVEL SENSOR REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

2.  Completely clean and remove any oil, dirt, sealant or other foreign matter that may be adhering to the cylinder block and oil pan.

3.  When reusing the oil pan installation bolts, clean any old sealant from the bolts.

Caution

•  Apply the silicone sealant in a single, unbroken line around the whole perimeter.

•  To prevent silicone sealant from hardening, adhere the oil pan to the cylinder block within 10 min after silicone sealant is applied. Tighten the installation bolts completely soon after adhering.

•  Using bolts with the old silicone sealant adhering could cause cracks in the cylinder block.

ac5wzw00007109

4.  Apply silicone sealant (TB1217D or equivalent) to the oil pan along the inside of the bolt holes as shown in the figure.

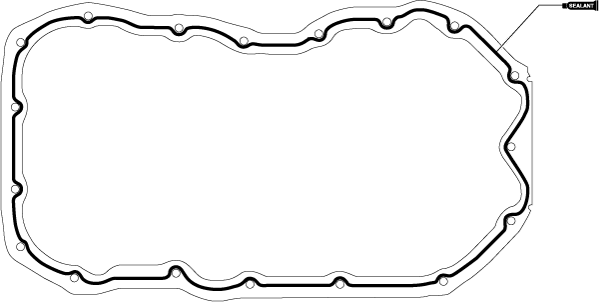

SKYACTIV-G 2.0

ac5jjw00006425

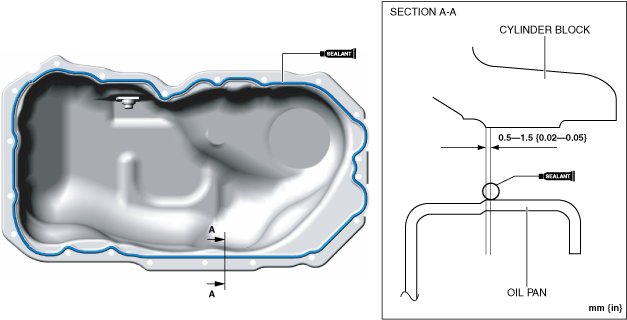

SKYACTIV-G 2.5

ac5wzw00010785

5.  Install the oil pan using the following procedure:

Caution

•  Remove any silicone sealant which oozes out into an oil pan installation bolt hole. If silicone sealant penetrates an oil pan installation bolt hole, the cylinder block could become damaged.

ac5wzw00007107

SKYACTIV-G 2.0

1.  Install the oil pan to the cylinder block.

2.  Tighten the bolts in the order shown in the figure.

ac5uuw00003462

SKYACTIV-G 2.5

1.  Install the oil pan to the cylinder block.

2.  Temporarily tighten the two bolts shown in the figure.

ac5wzw00010786

3.  Tighten the bolts in the order shown in the figure.

ac5wzw00010787
