SPLASH SHIELD REMOVAL/INSTALLATION

id091600808400

Front Splash Shield

1.  Remove the front mudguard. (See MUDGUARD REMOVAL/INSTALLATION.)

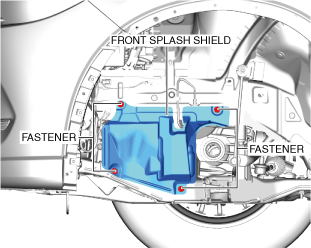

2.  Remove the fasteners.

ac5wzw00011820

3.  Remove the front splash shield.

4.  Install in the reverse order of removal.

Rear Splash Shield

1.  Remove the fastener.

ac5wzw00011821

2.  Remove the fastener.

ac5wzw00011822

3.  Pull the rear over fender in the direction of the arrow shown in the figure and disengage the clips shown in the figure.

ac5wzw00011823

4.  Remove the fasteners.

ac5wzw00011824

5.  Remove the screws.

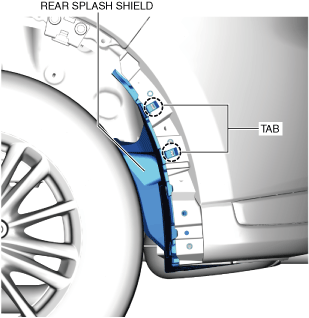

6.  Detach the tabs from the rear bumper and remove the rear splash shield.

ac5wzw00011825

7.  Install in the reverse order of removal.
