COOLING SYSTEM LOCATION INDEX [SKYACTIV-D 2.2]

id0112s6800100

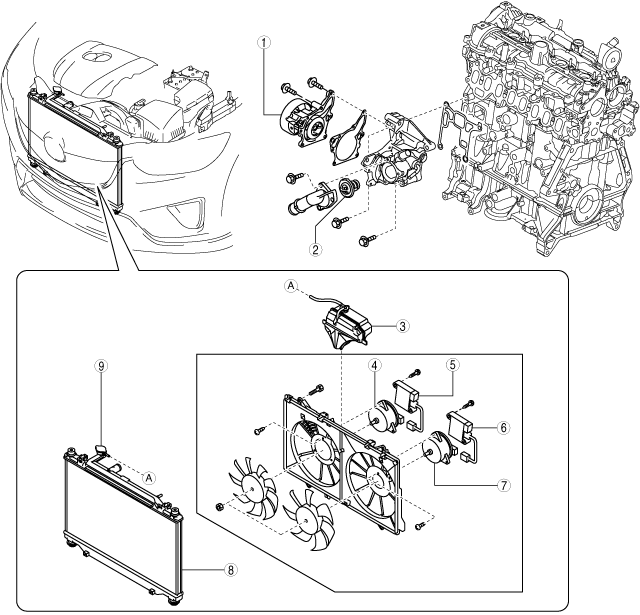

Fuel injector (2pin type)

ac5jjw00004204

1	Water pump (See WATER PUMP REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
2	Thermostat (See THERMOSTAT REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See THERMOSTAT INSPECTION [SKYACTIV-D 2.2].)
3	Coolant reserve tank (See ENGINE COOLANT LEVEL INSPECTION [SKYACTIV-D 2.2].) (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
4	Cooling fan motor No.2 (See COOLING FAN MOTOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See COOLING FAN MOTOR INSPECTION [SKYACTIV-D 2.2].)
5	Fan control module No.2 (See FAN CONTROL MODULE INSPECTION [SKYACTIV-D 2.2].)
6	Fan control module No.1 (See FAN CONTROL MODULE INSPECTION [SKYACTIV-D 2.2].)
7	Cooling fan motor No.1 (See COOLING FAN MOTOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See COOLING FAN MOTOR INSPECTION [SKYACTIV-D 2.2].)
8	Radiator (See ENGINE COOLANT PROTECTION INSPECTION [SKYACTIV-D 2.2].) (See ENGINE COOLANT REPLACEMENT [SKYACTIV-D 2.2].) (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-D 2.2].) (See RADIATOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
9	Cooling system cap (See COOLING SYSTEM CAP INSPECTION [SKYACTIV-D 2.2].)

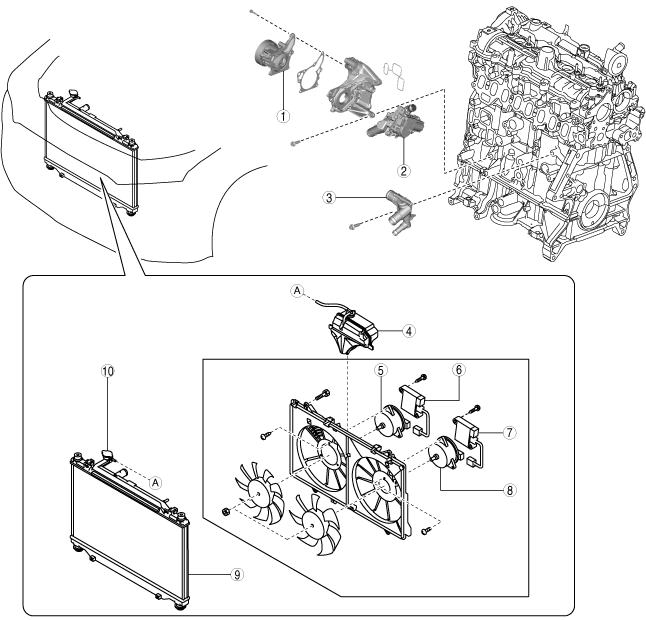

Fuel injector (6pin type)

ac5wzw00012020

1	Water pump (See WATER PUMP REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
2	Coolant Control Valve (See COOLANT CONTROL VALVE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See COOLANT CONTROL VALVE INSPECTION [SKYACTIV-D 2.2].)
3	Thermo valve (See THERMO VALVE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See THERMO VALVE INSPECTION [SKYACTIV-D 2.2].)
4	Coolant reserve tank (See ENGINE COOLANT LEVEL INSPECTION [SKYACTIV-D 2.2].) (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
5	Cooling fan motor No.2 (See COOLING FAN MOTOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See COOLING FAN MOTOR INSPECTION [SKYACTIV-D 2.2].)
6	Fan control module No.2 (See FAN CONTROL MODULE INSPECTION [SKYACTIV-D 2.2].)
7	Fan control module No.1 (See FAN CONTROL MODULE INSPECTION [SKYACTIV-D 2.2].)
8	Cooling fan motor No.1 (See COOLING FAN MOTOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See COOLING FAN MOTOR INSPECTION [SKYACTIV-D 2.2].)
9	Radiator (See ENGINE COOLANT PROTECTION INSPECTION [SKYACTIV-D 2.2].) (See ENGINE COOLANT REPLACEMENT [SKYACTIV-D 2.2].) (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-D 2.2].) (See RADIATOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
10	Cooling system cap (See COOLING SYSTEM CAP INSPECTION [SKYACTIV-D 2.2].)
