INTAKE-AIR SYSTEM [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]

id0113m2003300


Structure

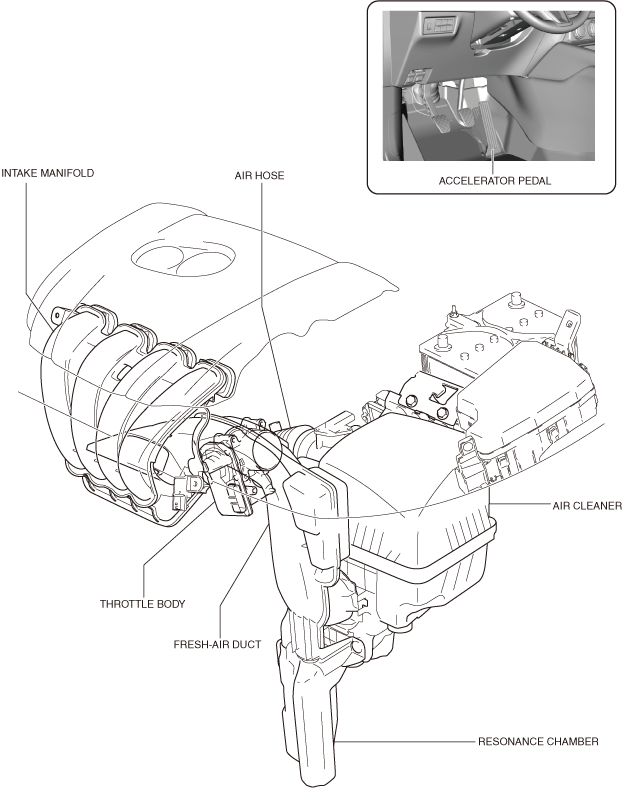

Structural View

ac5wzn00004663


System Diagram

ac5wzn00001324

Vacuum Hose Routing Diagram

ac5wzw00012172

Structure

•  The intake air system consists of the following parts:

Part name

Reference
Fresh-air duct
(See FRESH-AIR DUCT [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Resonance chamber
(See RESONANCE CHAMBER [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Air cleaner
(See AIR CLEANER [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Throttle body
(See THROTTLE BODY [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Intake manifold
(See INTAKE MANIFOLD [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Accelerator pedal
(See ACCELERATOR PEDAL, KICKDOWN SWITCH [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
