VACUUM CHAMBER REMOVAL/INSTALLATION [SKYACTIV-D 2.2]

id0113z7265400

Fuel injector (2pin type)

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the turbocharger. (See TURBOCHARGER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

3.  Remove in the order shown in the figure.

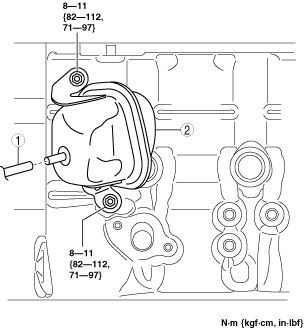

ac5wzw00007268

1
Vacuum hose
2
Vacuum chamber

4.  Install in the reverse order of removal.
