REGULATING SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-D 2.2]

id0113z7265800

Fuel injector (2pin type)

Caution

•  If the vacuum hose is installed incorrectly, it could cause a vehicle malfunction. To prevent this, refer to “VACUUM HOSE STRUCTURAL VIEW” and install the vacuum hose correctly. (See Vacuum hose structural view.)

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the battery and the battery tray. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

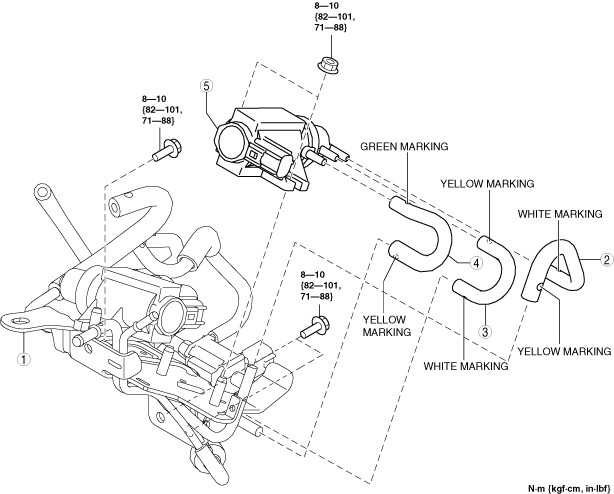

3.  Remove in the order shown in the figure.

ATX

ac5wzw00004675

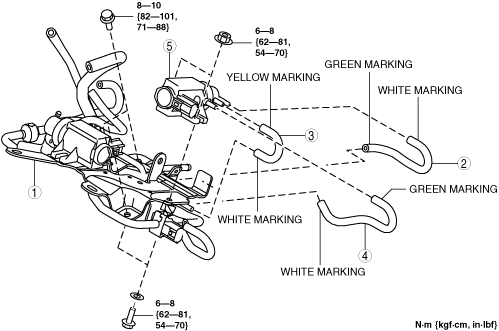

MTX

ac5wzw00004676

1	Vacuum pipe bracket
2	Vacuum hose No.1 (See Vacuum Hose No.1 Installation Note.)
3	Vacuum hose No.2 (See Vacuum Hose No.2 Installation Note.)
4	Vacuum hose No.3 (See Vacuum Hose No.3 Installation Note.)
5	Regulating solenoid valve

4.  Install in the reverse order of removal.

Vacuum Hose No.3 Installation Note

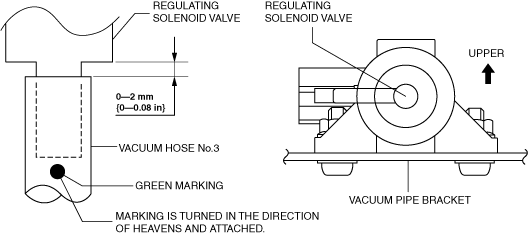

1.  Install vacuum hose No.3 as shown in the figure.

Regulating solenoid valve side

ac5wzw00008600

Vacuum pipe bracket side

ac5wzw00008601

ac5wzw00008602

Vacuum Hose No.2 Installation Note

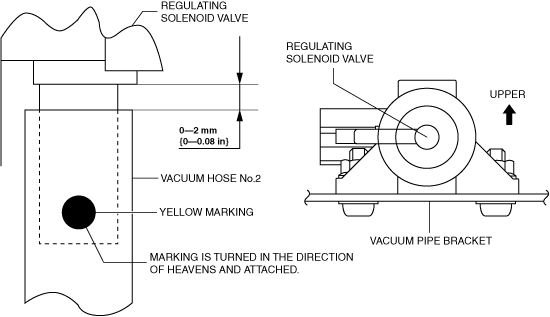

1.  Install vacuum hose No.2 as shown in the figure.

Regulating solenoid valve side

ac5wzw00008603

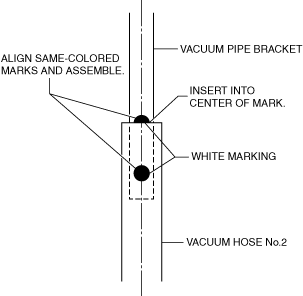

Vacuum pipe bracket side

ac5wzw00008604

Vacuum Hose No.1 Installation Note

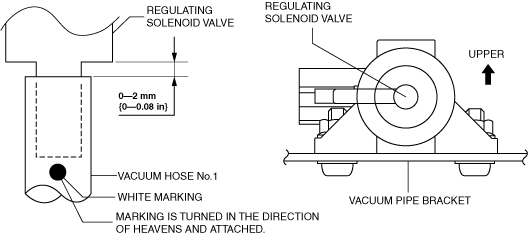

1.  Install vacuum hose No.1 as shown in the figure.

Regulating solenoid valve side

ac5wzw00008605

Vacuum pipe bracket side

ac5wzw00008606

ac5wzw00008607

Vacuum hose structural view

1.  Verify that the vacuum hose is installed correctly as shown in the figure.

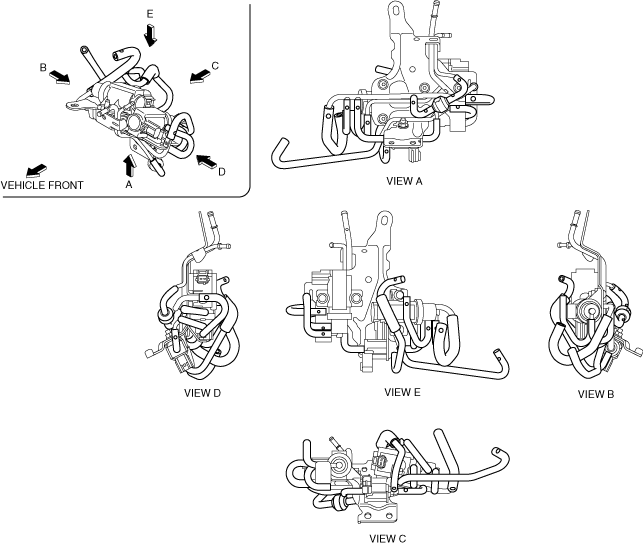

Whole figure (ATX)

ac5wzw00005334

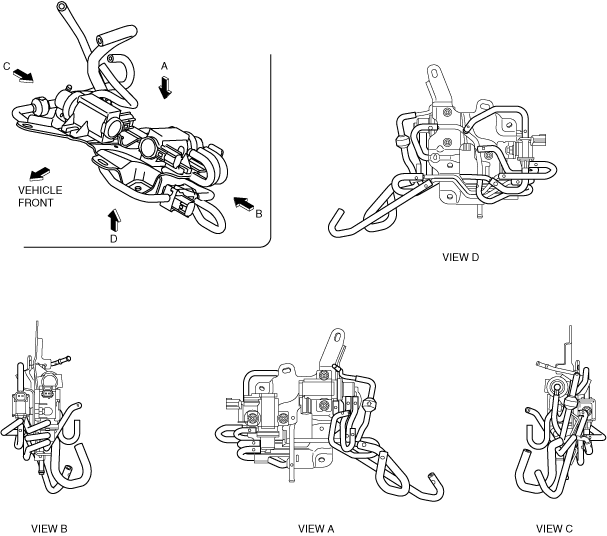

Whole figure (MTX)

ac5wzw00005335

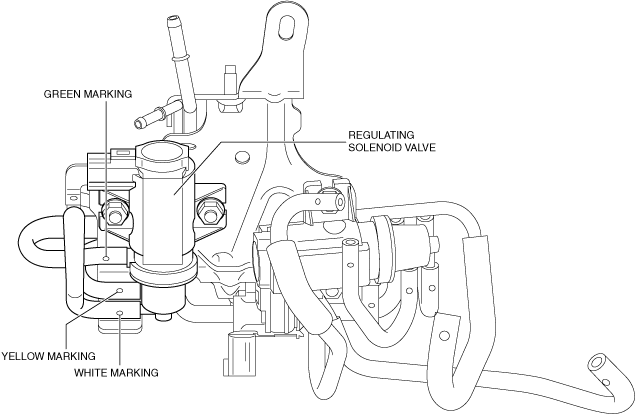

Regulating solenoid valve side (ATX)

ac5wzw00004687

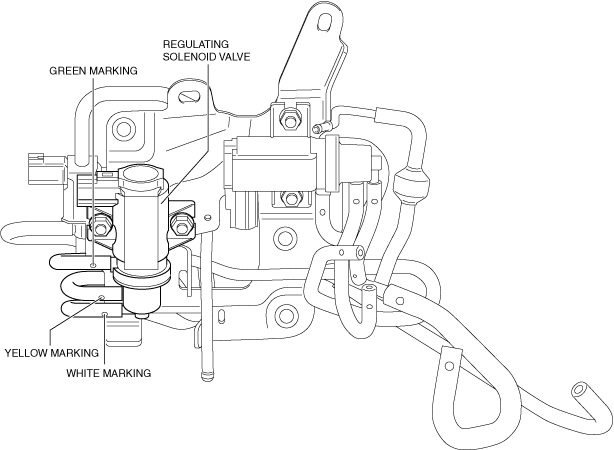

Regulating solenoid valve side (MTX)

ac5wzw00004688

Vacuum pipe bracket side (ATX)

ac5wzw00004689

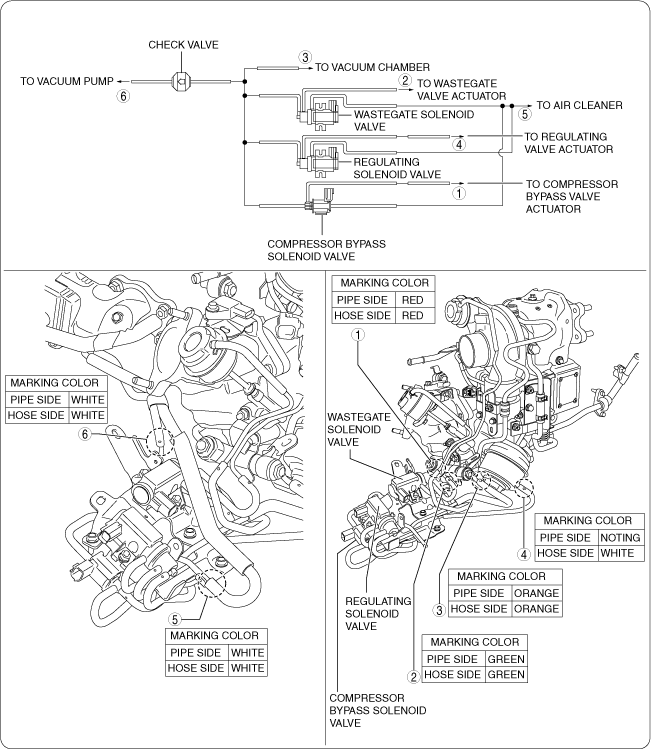

Vacuum pipe bracket side (MTX)

ac5wzw00004690
