CHECK VALVE REMOVAL/INSTALLATION [SKYACTIV-D 2.2]

id0113z7266000

Fuel Injector (2pin type)

Caution

•  If the vacuum hose is installed incorrectly, it could cause a vehicle malfunction. To prevent this, refer to “VACUUM HOSE STRUCTURAL VIEW” and install the vacuum hose correctly. (See Vacuum hose structural view.)

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the battery and the battery tray. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

3.  Remove in the order shown in the figure.

4.  Install in the reverse order of removal.

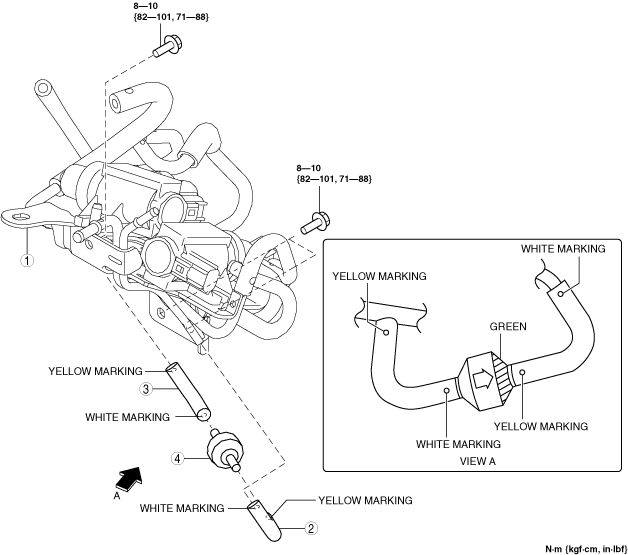

ATX

ac5wzw00004895

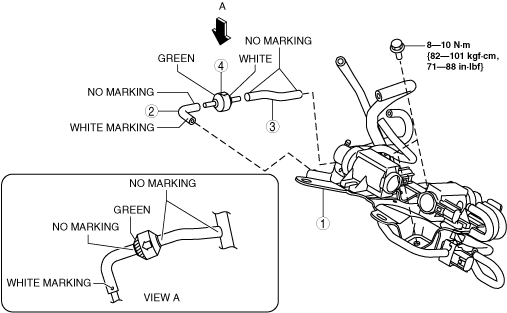

MTX

ac5wzw00004896

1	Vacuum pipe bracket
2	Vacuum hose No.1 (See Vacuum hose No.1 installation note (Fuel injector (2pin type)).)
3	Vacuum hose No.2 (See Vacuum hose No.2 installation note (Fuel injector (2pin type)).)
4	Check valve

Vacuum hose No.2 installation note (Fuel injector (2pin type))

1.  Install vacuum pump No.2 as shown in the figure.

Check valve side

ac5wzw00008608

Vacuum pipe bracket side

ac5wzw00008609

Vacuum hose No.1 installation note (Fuel injector (2pin type))

1.  Install vacuum pump No.1 as shown in the figure.

Check valve side

ac5wzw00008610

Vacuum pipe bracket side

ac5wzw00008611

Vacuum hose structural view

1.  Verify that the vacuum hose is installed correctly as shown in the figure.

Whole figure (ATX)

ac5wzw00004669

Whole figure (MTX)

ac5wzw00004670

Check valve side (ATX)

ac5wzw00004903

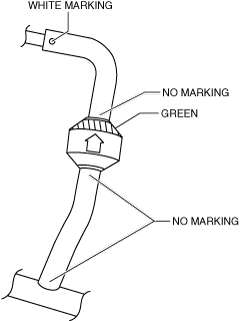

Check valve side (MTX)

ac5wzw00004904

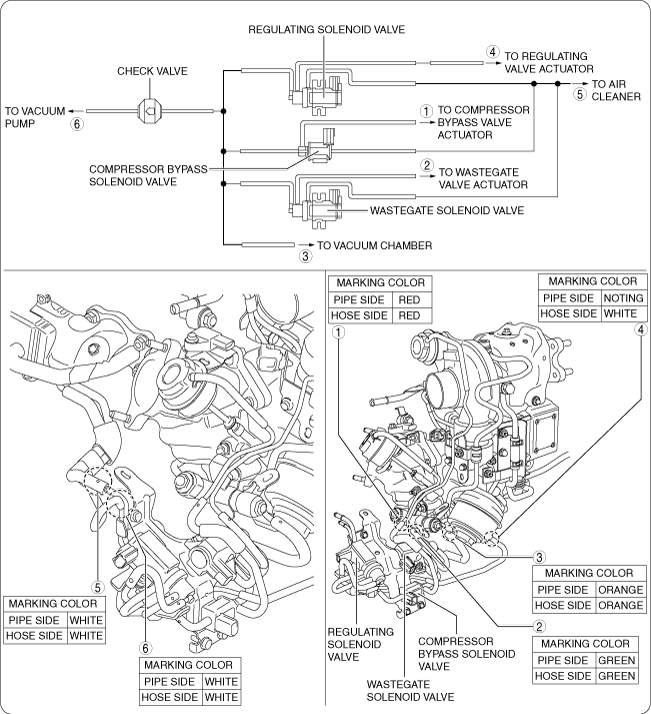

Vacuum pipe bracket side (ATX)

ac5wzw00004905

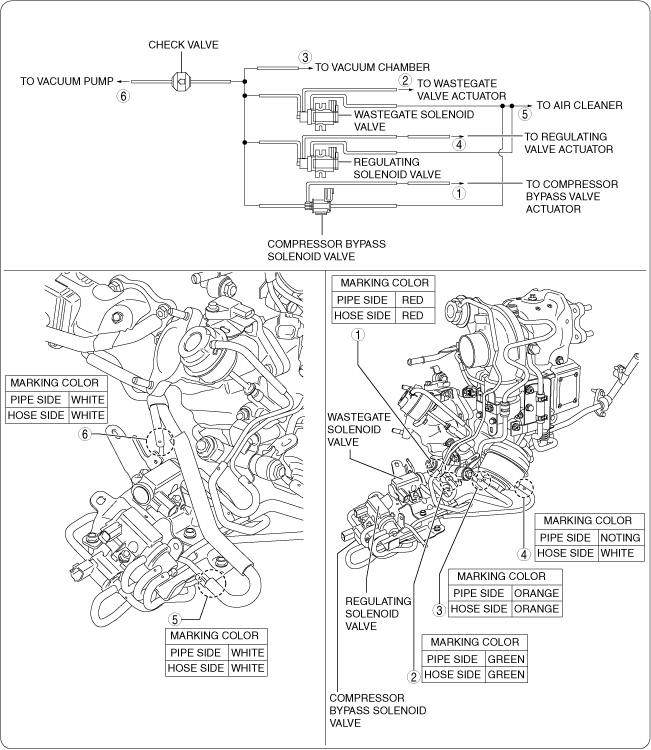

Vacuum pipe bracket side (MTX)

ac5wzw00004906

Fuel Injector (6pin type)

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

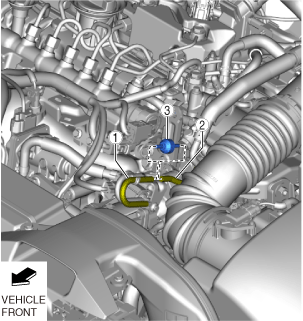

3.  Remove in the order shown in the figure.

4.  Install in the reverse order of removal.

ac5wzw00011976

1	Vacuum hose No.1 (See Vacuum hose No.1 installation note (Fuel injector (6pin type)).)
2	Vacuum hose No.2 (See Vacuum hose No.2 installation note (Fuel injector (6pin type)).)
3	Check valve (See Check valve installation note.)

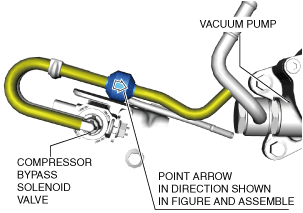

Check valve installation note

1.  Install the check valve as shown in the figure.

ac5wzw00011977

Vacuum hose No.2 installation note (Fuel injector (6pin type))

1.  Install vacuum hose No.2 as shown in the figure.

ac5wzw00011978

Vacuum hose No.1 installation note (Fuel injector (6pin type))

1.  Install vacuum hose No.1 as shown in the figure.

ac5wzw00011979
