WASTEGATE SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-D 2.2]

id0113z7266100

Fuel injector (2pin type)

Caution

•  If the vacuum hose is installed incorrectly, it could cause a vehicle malfunction. To prevent this, refer to “VACUUM HOSE STRUCTURAL VIEW” and install the vacuum hose correctly. (See Vacuum hose structural view.)

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the battery and the battery tray. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

3.  Remove in the order shown in the figure.

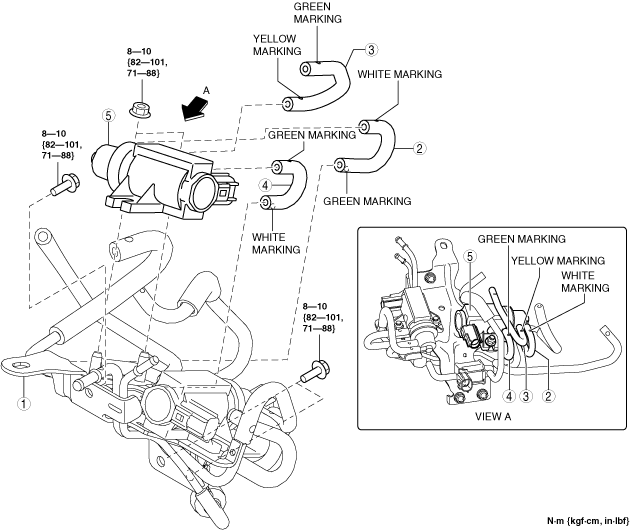

ATX

ac5wzw00004691

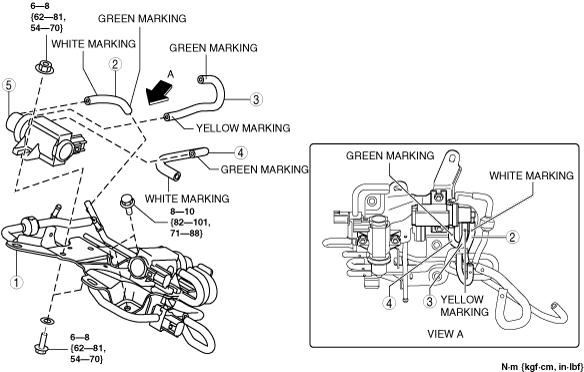

MTX

ac5wzw00004692

1	Vacuum pipe bracket
2	Vacuum hose No.1 (See Vacuum Hose No.1 Installation Note.)
3	Vacuum hose No.2 (See Vacuum Hose No.2 Installation Note.)
4	Vacuum hose No.3 (See Vacuum Hose No.3 Installation Note.)
5	Wastegate solenoid valve

4.  Install in the reverse order of removal.

Vacuum Hose No.3 Installation Note

1.  Install vacuum hose No.3 as shown in the figure.

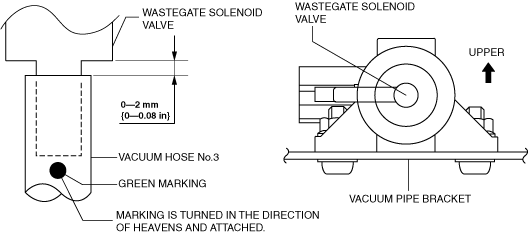

Wastegate solenoid valve side

ac5wzw00008612

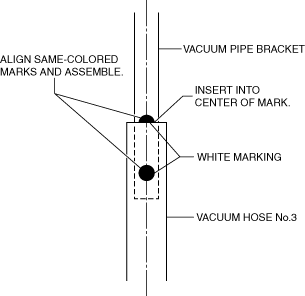

Vacuum pipe bracket side

ac5wzw00008613

Vacuum Hose No.2 Installation Note

1.  Install vacuum hose No.2 as shown in the figure.

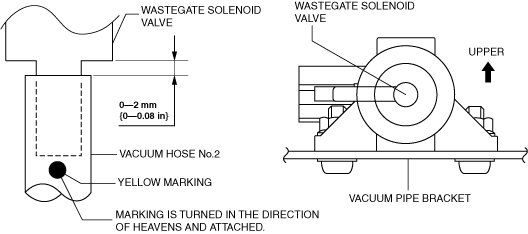

Wastegate solenoid valve side

ac5wzw00008614

Wastegate valve actuator side

ac5wzw00008615

Vacuum Hose No.1 Installation Note

1.  Install vacuum hose No.1 as shown in the figure.

Wastegate solenoid valve side

ac5wzw00008616

Vacuum pipe bracket side

ac5wzw00008617

Vacuum hose structural view

1.  Verify that the vacuum hose is installed correctly as shown in the figure.

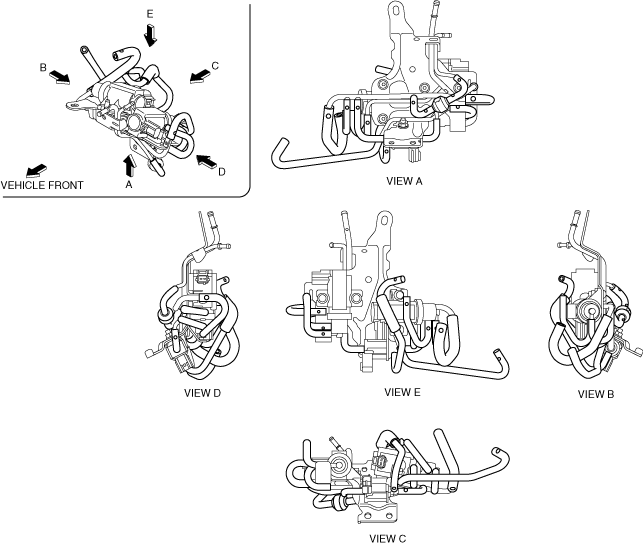

Whole figure (ATX)

ac5wzw00004669

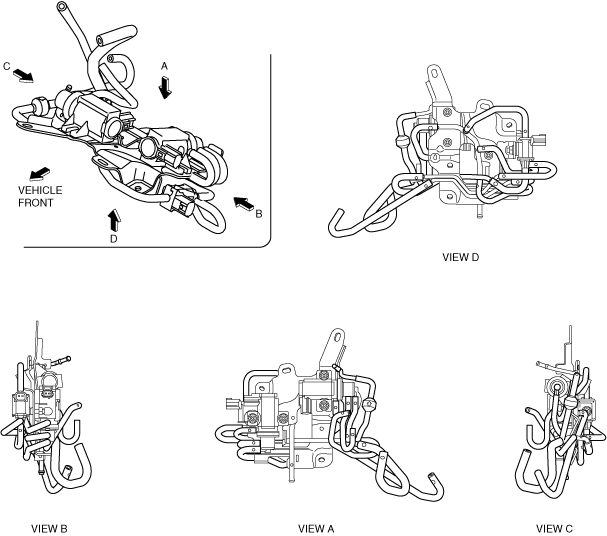

Whole figure (MTX)

ac5wzw00004670

Wastegate solenoid valve side (ATX)

ac5wzw00004701

Wastegate solenoid valve side (MTX)

ac5wzw00004702

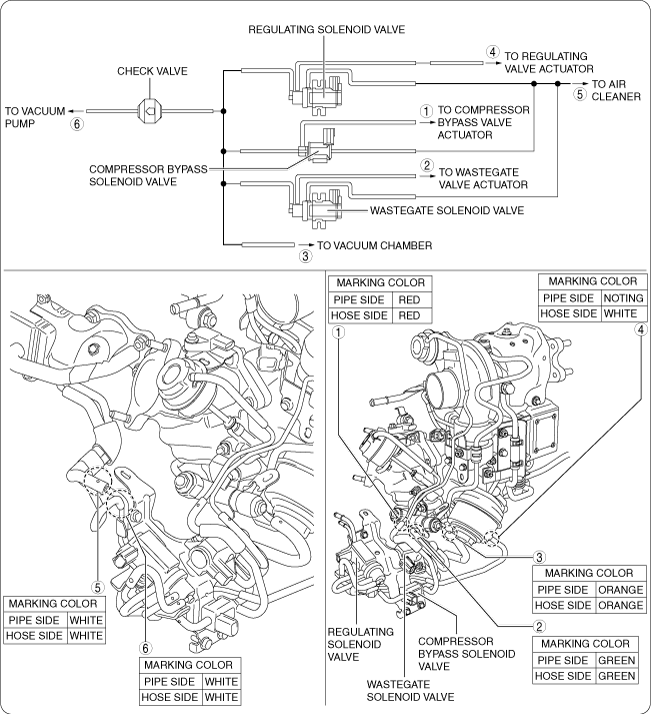

Vacuum pipe bracket side (ATX)

ac5wzw00004703

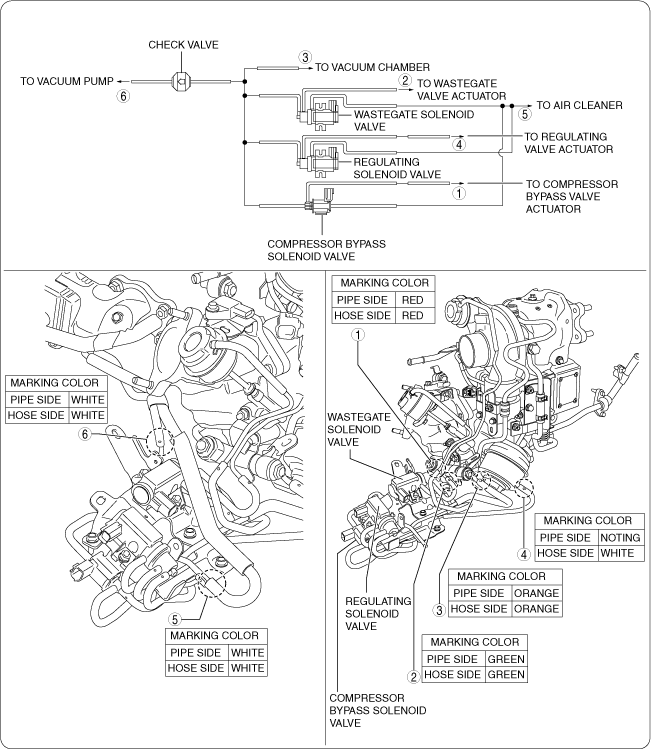

Vacuum pipe bracket side (MTX)

ac5wzw00004704
