GLOW PLUG CONTROL MODULE REMOVAL/INSTALLATION [SKYACTIV-D 2.2]

id0113z7705400

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the air cleaner. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

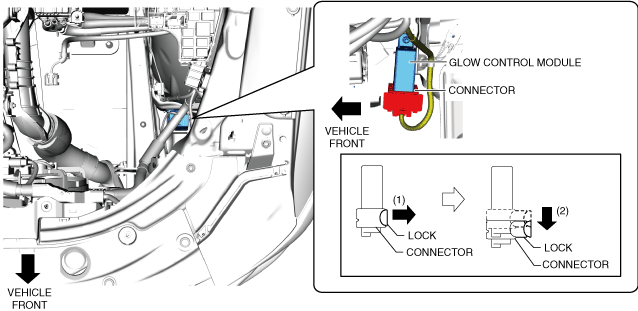

3.  Pull out the lock of the glow control module connector in the direction of arrow (1) shown in the figure.

ac5wzw00008618

4.  Move the connector in the direction of arrow (2) shown in the figure to disconnect it.

5.  Remove the nut.

ac5wzw00008966

6.  Remove the glow control module.

7.  Install in the reverse order of removal.
