FUEL SYSTEM [SKYACTIV-G 2.5T]

id0114q4002600


Outline

•  A multiple hole type fuel injector has been adopted to provide high fuel injection accuracy and improved fuel efficiency and output.
•  A high pressure fuel pump has been adopted to increase the fuel pressure and improve the vaporization characteristic of the fuel.

Structure


Structural view

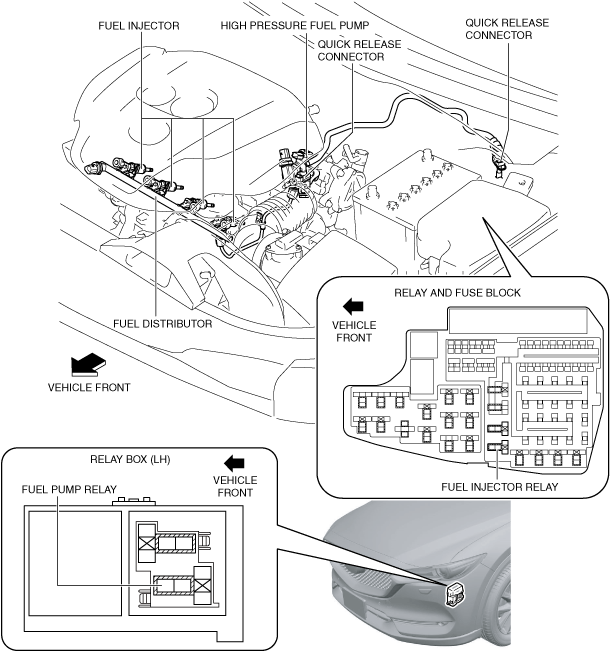

Engine compartment side

ac5wzn00005354

Fuel tank side

ac5wzn00004900

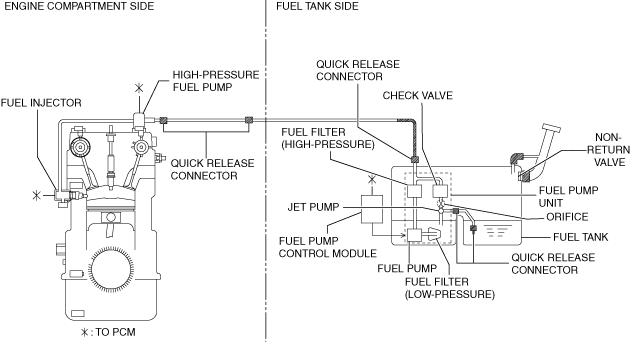

System diagram

ac5wzn00005261

•  The fuel system consists of the following parts:

Part/System name

Reference
Electronic returnless fuel system
(See ELECTRONIC RETURNLESS FUEL SYSTEM [SKYACTIV-G 2.5T].)
Fuel pump unit
(See FUEL PUMP UNIT [SKYACTIV-G 2.5T].)
Direct fuel injection system
(See DIRECT FUEL INJECTION SYSTEM [SKYACTIV-G 2.5T].)
High pressure fuel pump
(See HIGH PRESSURE FUEL PUMP [SKYACTIV-G 2.5T].)
Fuel distributor
(See FUEL DISTRIBUTOR [SKYACTIV-G 2.5T].)
Fuel injector
(See FUEL INJECTOR [SKYACTIV-G 2.5T].)
Fuel tank
(See FUEL TANK [SKYACTIV-G 2.5T].)
Non-return valve
(See NON-RETURN VALVE [SKYACTIV-G 2.5T].)
Fuel pump relay
(See FUEL PUMP RELAY [SKYACTIV-G 2.5T].)
Fuel injector relay
(See FUEL INJECTOR RELAY [SKYACTIV-G 2.5T].)
Fuel pump control module
(See FUEL PUMP CONTROL MODULE [SKYACTIV-G 2.5T].)
Quick release connector (fuel system)
(See QUICK RELEASE CONNECTOR (FUEL SYSTEM) [SKYACTIV-G 2.5T].)


Specification

Item

Specification
Fuel injector
Type
High resistance
Fuel supply method
Top-feed
Drive types
Electronic
Fuel pressure
(kPa {kgf/cm2, psi})
545—695 {5.56—7.08, 79.1—100.0}
Fuel pump type
Electric
Fuel tank capacity
(L {US gal, Imp gal})
58.0 {15.3, 12.8}


Fuel type

Fuel

Research Octane Number

Country
Premium unleaded fuel (Conforming to EN 228 and within E10)*1
95 or above
Tahiti, Vanuatu, Lebanon, Libya, Tunisia, Madagascar, Guatemala, Bolivia, Uruguay, Honduras, Nicaragua, Aruba, St. Martin
Regular unleaded fuel (Conforming to Fuel Quality Standards Act 2000)*2
90 or above
Australia, New Zealand, Myanmar, The Philippines, Marshall Islands, USTT, Syria, Jordan, Cameroon, Ivory Coast, Nigeria, Angola, Burundi, Gabon, Ghana, Chile, El Salvador, Costa Rica, Ecuador, Haiti, Colombia, Dominican Republic (L.H.D.), Panama, Peru, B. Virgin, Curacao

*1  :Europe
*2  :Australia
