CHECK VALVE REMOVAL/INSTALLATION [SKYACTIV-D 2.2]

id0116e1189700

1.  Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

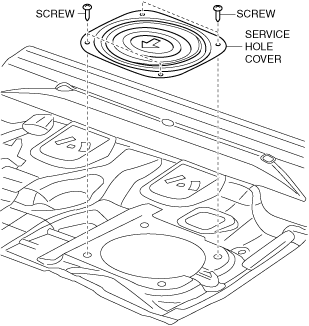

2.  Remove the service hole cover.

ac5wzw00004830

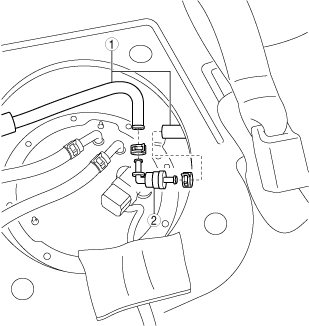

3.  Remove in the order shown in the figure.

ac5jjw00003605

1	Evaporative hose
2	Check valve

4.  Install in the reverse order of removal.
