UREA TANK [SKYACTIV-D 2.2]

id0116e1285300

With SCR system

Purpose, Function

•  The urea tank stores AdBlue^® safely.

Construction

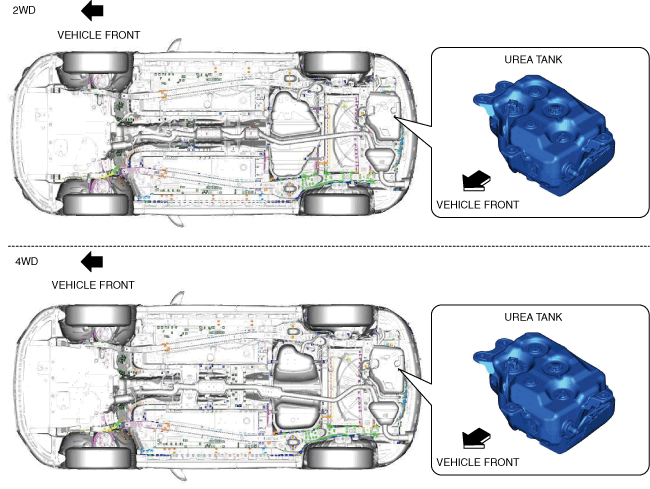

•  The urea tank is installed under the trunk compartment at the rear of the vehicle.

ac5wzn00005011

•  The urea tank is made of high-density polyethylene.

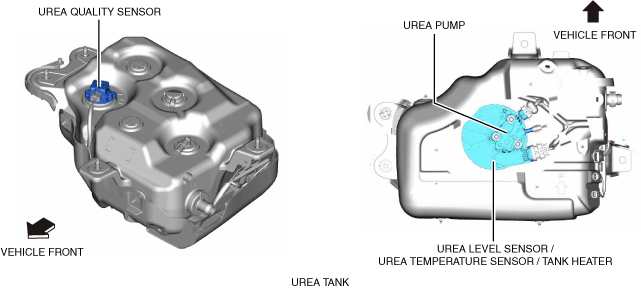

•  The urea tank is integrated with the following parts

ac5wzn00005071

―  Urea pump (See UREA PUMP [SKYACTIV-D 2.2].)

―  Urea quality sensor (See UREA QUALITY SENSOR [SKYACTIV-D 2.2].)

―  Urea level sensor (See UREA LEVEL SENSOR [SKYACTIV-D 2.2].)

―  Urea temperature sensor (See UREA TEMPERATURE SENSOR [SKYACTIV-D 2.2].)

―  Tank heater (See UREA TANK HEATER [SKYACTIV-D 2.2].)
