UREA-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-D 2.2]

id0116e1809400

1.  Open the fuel-filler lid.

2.  Remove the rear tire (LH). (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

3.  Remove the fuel-filler cap and plate. (See FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

4.  Remove the rear mudguard (LH). (See MUDGUARD REMOVAL/INSTALLATION.)

5.  Remove the screws and fastener shown in the figure.

ac5uuw00008403

6.  Remove in the order shown in the figure.

7.  Install in the reverse order of removal.

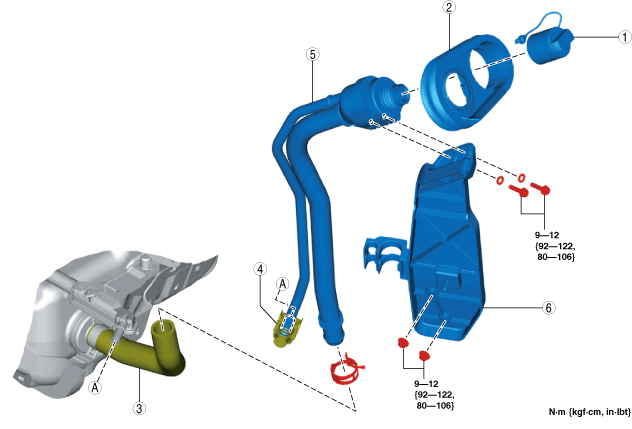

ac5uuw00008404

1	Urea-filler cap
2	Dust cover
3	Joint hose
4	Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
5	Urea-filler pipe
6	Bracket
