MUDGUARD REMOVAL/INSTALLATION

id091600467600

Front mudguard

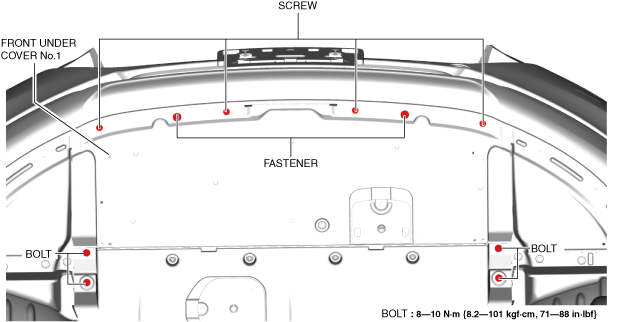

1.  Remove the screws.

ac5wzw00011041

2.  Remove the fasteners.

3.  Remove the bolts.

4.  Remove the front over fender. (See FRONT OVER FENDER REMOVAL/INSTALLATION.)

5.  Remove the screws.

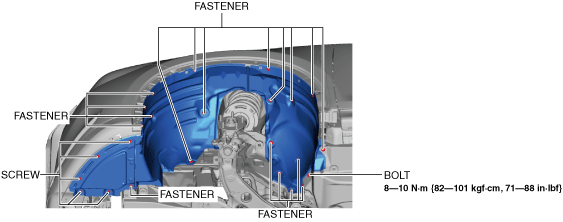

LH

ac5wzw00011042

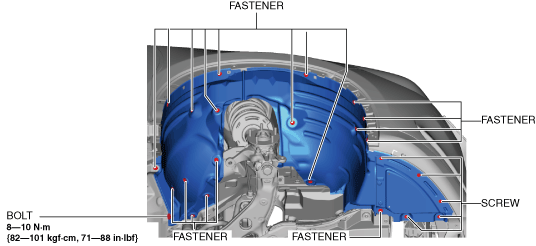

RH

ac5wzw00011043

6.  Remove the fasteners.

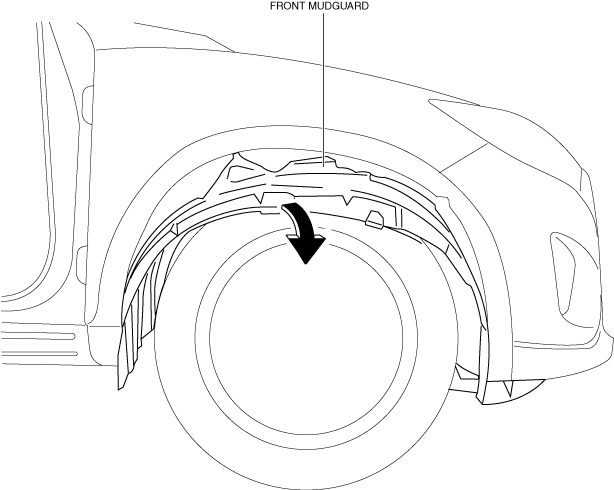

7.  Pull the front mudguard in the direction of the arrow shown in the figure.

ac5wzw00011044

8.  Remove the front deflector. (when removing the front deflector) (See DEFLECTOR REMOVAL/INSTALLATION.)

9.  Install in the reverse order of removal.

Rear mudguard

1.  Remove the fastener (LH).

LH

ac5wzw00011949

RH

ac5wzw00011950

2.  Remove the cap nuts.

3.  Remove the rear mudguard.

4.  Install in the reverse order of removal.
