EMISSION SYSTEM [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]

id0116m1110100


Outline

•  A single-nano catalyst has been adopted for the under-floor, three-way catalyst to improve emission gas purification efficiency.

Structural View

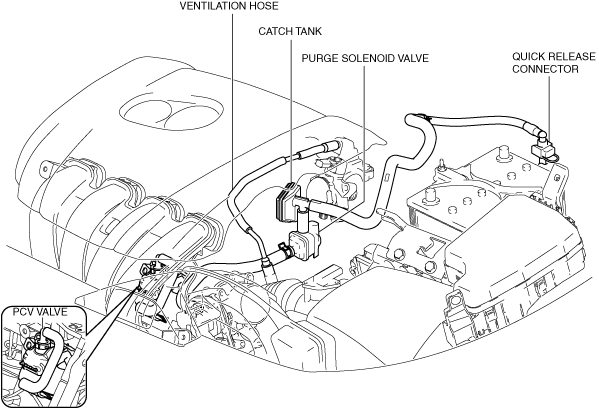

Engine compartment side

ac5wzn00004934


Exhaust system side

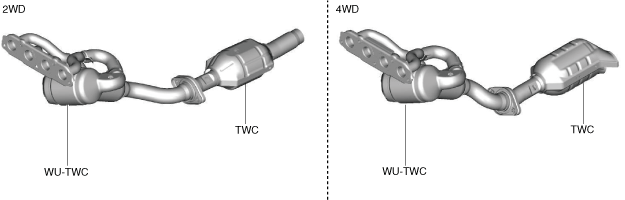

Without coolant control valve

ac5wzn00004935

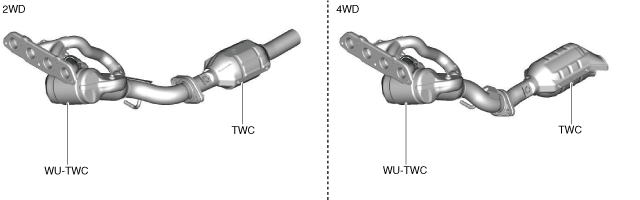

With coolant control valve

ac5wzn00004936

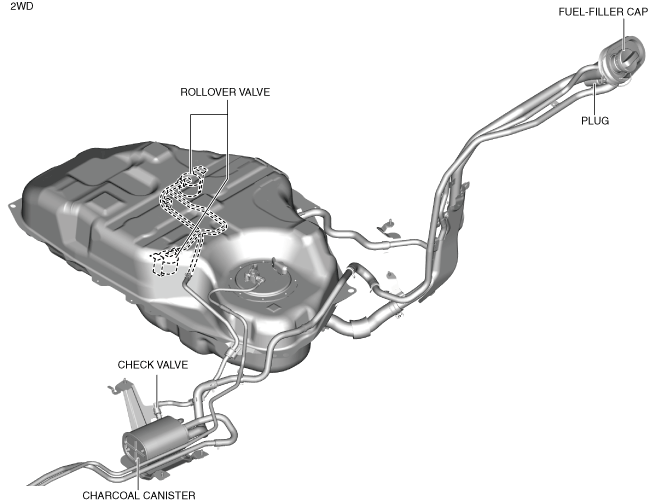

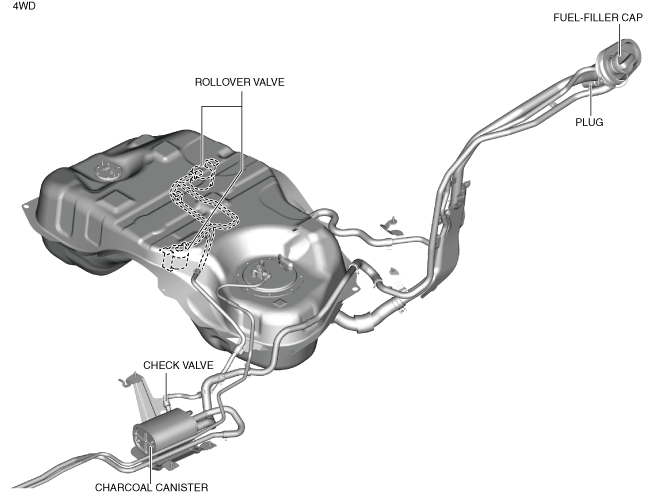

Fuel tank side

ac5wzn00004420
ac5wzn00003849

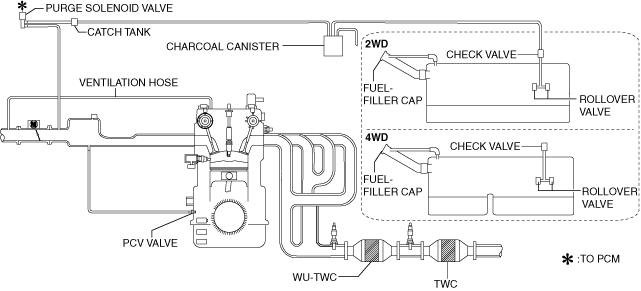

System Diagram

ac5wzn00003850

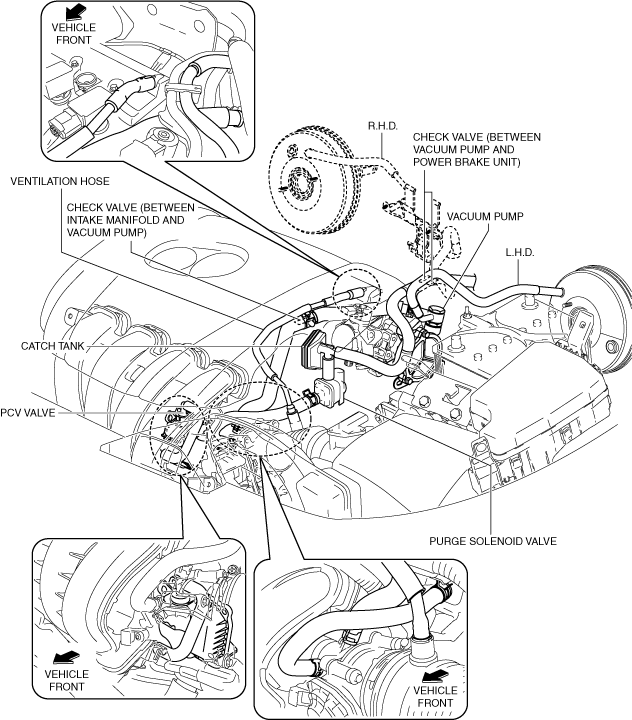

Vacuum Hose Routing Diagram

ac5wzn00004937

Structure

•  The emission system consists of the following parts:

Part/System name

Reference
Exhaust gas purification system
(See EXHAUST GAS PURIFICATION SYSTEM [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Catalytic converter
(See CATALYTIC CONVERTER [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Positive crankcase ventilation system
(See POSITIVE CRANKCASE VENTILATION (PCV) SYSTEM [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
PCV valve
(See POSITIVE CRANKCASE VENTILATION (PCV) VALVE [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Evaporative emission control system
(See EVAPORATIVE EMISSION (EVAP) CONTROL SYSTEM [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Purge solenoid valve
(See PURGE SOLENOID VALVE [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Catch tank
(See CATCH TANK [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Charcoal canister
(See CHARCOAL CANISTER [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Check valve
(See CHECK VALVE [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Rollover valve
(See ROLLOVER VALVE [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Fuel-filler cap
(See FUEL-FILLER CAP [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Quick release connector (emission system)
(See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)


Specification

Item

Specification
Catalyst form
WU-TWC (monolith)
TWC (monolith)
EVAP control system
Charcoal canister type
PCV system
Closed type
