CHECK VALVE REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]

id0116m1189700

1.  Remove the floor under cover No.2 (LH). (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)

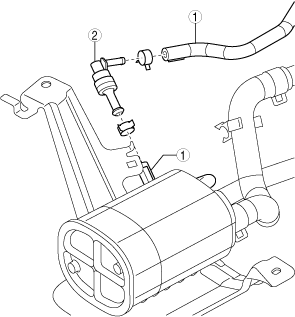

2.  Remove in the order indicated in the table.

ac5wzw00001381

1	Evaporative hose
2	Check valve

3.  Install in the reverse order of removal.
