CHECK VALVE INSPECTION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]

id0116m1189900

1.  Remove the check valve. (See CHECK VALVE REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

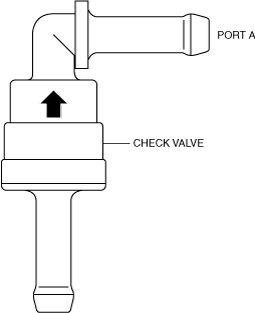

2.  Verify that there is no airflow when positive pressure is applied to port A.

ac5wzw00001377

•  If there is airflow, replace the check valve. (See CHECK VALVE REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

3.  Verify that there is no airflow when negative pressure is applied to port A.

•  If there is no airflow, replace the check valve. (See CHECK VALVE REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
