CHECK VALVE (EMISSION SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G 2.5T]

id0116q4192400

Ejector Side

1.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

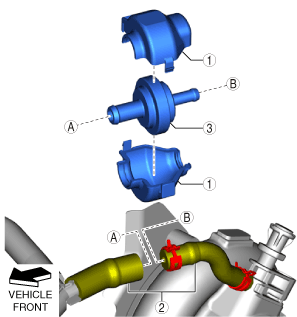

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

ac9uuw00009467

1	Cover
2	Evaporative hose
3	Check valve (ejector side) (See Check valve (ejector side) installation note.)

Check valve (ejector side) installation note

1.  Install the check valve (ejector side) as shown in the figure.

ac9uuw00009478

Intake Manifold Side

1.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

ac9uuw00009468

1	Vacuum hose
2	Check valve (intake manifold side) (See Check valve (intake manifold side) installation note.)

Check valve (intake manifold side) installation note

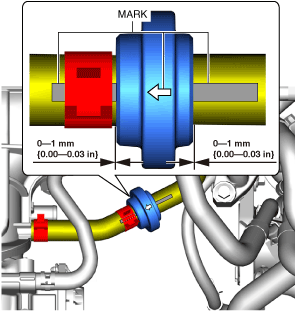

1.  Install the check valve (intake manifold side) as shown in the figure.

ac9uuw00009479

Fuel Tank Side

1.  Remove the floor under cover No.2 (LH). (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)

2.  Remove the floor under cover No.1 (LH). (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

ac9uuw00009463

1	Evaporative hose
2	Check valve (fuel tank side)
