DC-DC CONVERTER REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]

id0117000046m1

Vehicle With i-stop

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

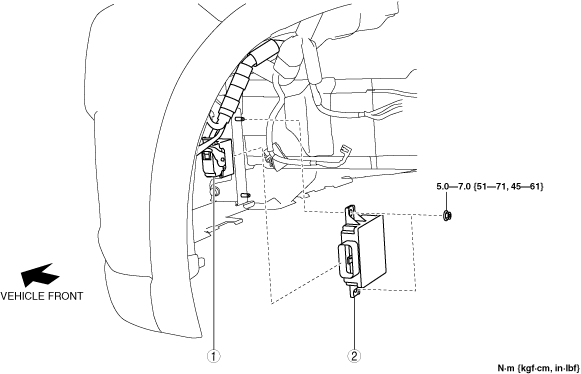

ac5wzw00010189

1	DC-DC converter connector (See DC-DC converter connector installation note.)
2	DC-DC converter

DC-DC converter connector installation note

1.  Before installation, verify that the connector lever is unlocked position.

ac5wzw00002644

2.  Connect the DC-DC converter connector using the following procedure:

(1)  Insert the DC-DC converter connector straight until it stops.

ac5wzw00002645

(2)  Move the connector lever until a click sound is heard.

ac5wzw00002646
