CHARGING SYSTEM LOCATION INDEX [SKYACTIV-G 2.5T]

id0117008001r2

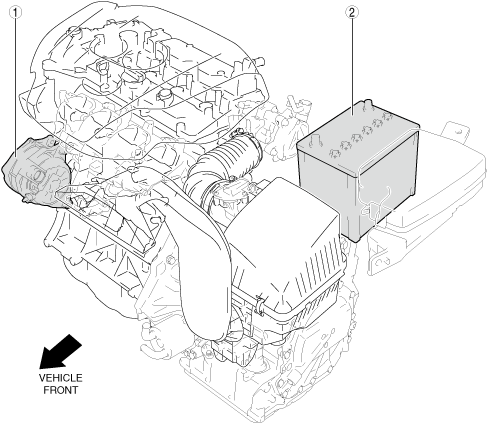

ac9uuw00006461

1	Generator (See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See GENERATOR INSPECTION [SKYACTIV-G 2.5T].) (See GENERATOR DISASSEMBLY/ASSEMBLY [SKYACTIV-G 2.5T].)
2	Battery (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See BATTERY INSPECTION.) (See BATTERY RECHARGING.)
