BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.5T]

id0117008005r2


Operation After Replacing Battery (With i-stop)

Note
•  If the battery charge/discharge flow (number of times battery can operate) exceeds the specification, a DTC is recorded and the i-stop warning light (amber) flashes. If the battery charge/discharge flow (number of times battery can operate) exceeds the specification, replace the battery with a new one.
•  When replacing the battery, perform the following procedure: When replacing the PCM simultaneously, perform the PCM configuration first. (See PCM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See PCM CONFIGURATION (USING READ/WRITE FUNCTION) [SKYACTIV-G 2.5T].) (See PCM CONFIGURATION (USING AS-BUILT DATA) [SKYACTIV-G 2.5T].)

Without multi-information display

Step

Action
1
Switch the ignition ON (engine off).
2
Shift the selector lever to the N position.
3
Perform the following work with the brake pedal depressed.
1.  Depress the accelerator pedal for 5 s or more.
2.  Verify that the charging system warning light and the master warning light flash.
3.  Depress and release the accelerator pedal 3 times.
4.  Verify that the charging system warning light illuminates and the master warning light turns off.
4
Switch the ignition off and disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
5
Verifying battery condition initialization setting (i-stop setting). (See BATTERY CONDITION INITIALIZATION SETTING (i-stop SETTING).)

With multi-information display

Step

Action
1
Close the all doors.
2
Switch the ignition ON (engine off).
3
If a warning message is displayed in the multi-information display, clear the screen using the INFO switch and then go to the next step.
4
Shift the selector lever to the N position.
5
Perform the following work with the brake pedal depressed.
1.  Depress the accelerator pedal for 5 s or more.
2.  Verify that a warning message (master warning light) on the multi-information display flashes.
3.  Depress and release the accelerator pedal 3 times.
4.  Verify that a warning message (master warning light) on the multi-information display turn off.
6
Switch the ignition off and disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
7
Verifying battery condition initialization setting (i-stop setting). (See BATTERY CONDITION INITIALIZATION SETTING (i-stop SETTING).)

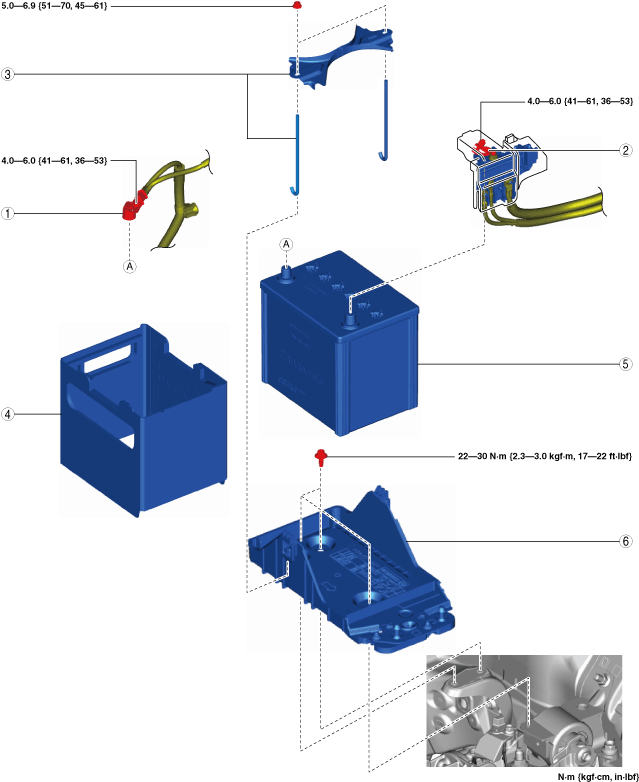

Battery Removal/Installation

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

ac9uuw00008421

1
Negative battery terminal
(See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
(See Negative battery terminal connection note.)
2
Positive battery terminal
(See Positive battery terminal connection note.)
3
Battery clamp
(See Battery clamp installation note.)
4
Battery box
(See Battery box installation note.)
5
Battery
6
Battery tray
(See Battery tray removal note.)
(See Battery tray installation note.)


Battery and battery box removal note (With i-stop)

1.  Remove the battery with the battery box while the battery is positioned at an angle as shown in the figure.

ac9wzw00003790


Battery tray removal note

1.  Remove the three battery tray bolts so that the battery tray is free to move.

2.  Remove the rubber at the two locations on the air cleaner component from the battery tray.

ac9uuw00008422

3.  Remove the battery tray.


Battery tray installation note

1.  Set the battery tray to the installation position.

2.  Tighten the battery tray installation bolts in the order shown in the figure.

ac9uuw00008423

Tightening torque
22—30 N·m {2.3—3.0 kgf·m, 17—22 ft·lbf}

3.  Install the rubber at the two locations on the air cleaner component to the battery tray.

ac9uuw00008422


Battery box installation note

1.  Install the battery box so that the side with the larger notch is pointed at the engine.

am6xuw00006703

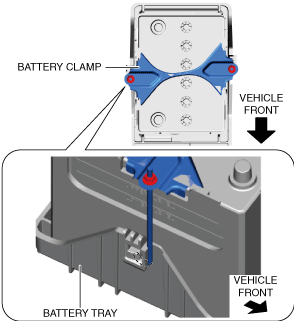

Battery clamp installation note

1.  Install the battery clamp as shown in the figure.

ac9uuw00008424


Positive battery terminal connection note

Caution
•  Connect the battery terminal while pushing it down because the battery terminal may loosen.

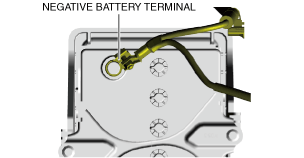

Negative battery terminal connection note

Caution
•  Connect the battery terminal while pushing it down because the battery terminal may loosen.

1.  Connect the negative battery terminal so that the wiring harness does not block the upper part of the battery filler cap.

ac9uuw00006547
