CHARGING SYSTEM [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]

id0117m2102900

Outline

• Regulator-less generator (built-in power transistor) has been adopted.

• A generator using two delta connection type stator coils has been adopted.

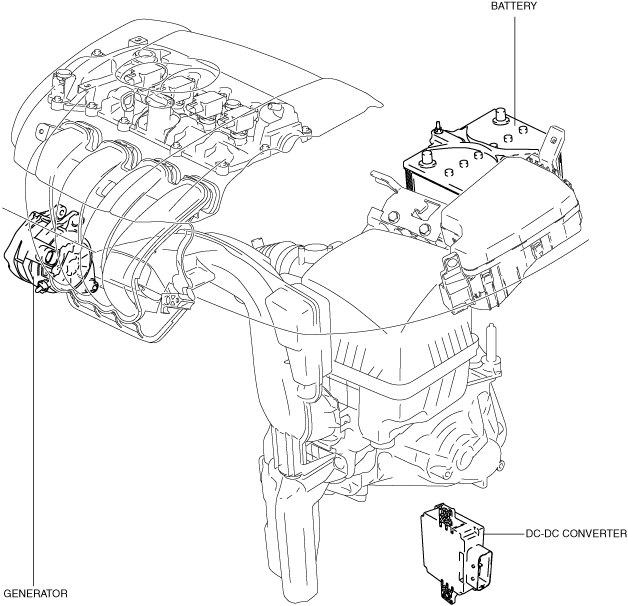

Structural View

ac5wzn00005457

Structure

• Consists of the following parts:

Battery	(See BATTERY [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Generator	(See GENERATOR [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
DC-DC converter	(See DC-DC CONVERTER [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Charging system warning indication/charging system warning light	(See CHARGING SYSTEM WARNING INDICATION/CHARGING SYSTEM WARNING LIGHT [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
