CHARGING SYSTEM [SKYACTIV-G 2.5T]

id0117r2102900

Outline

• Performs the charge/discharge of the electricity required by the vehicle.

Structure

Structural view

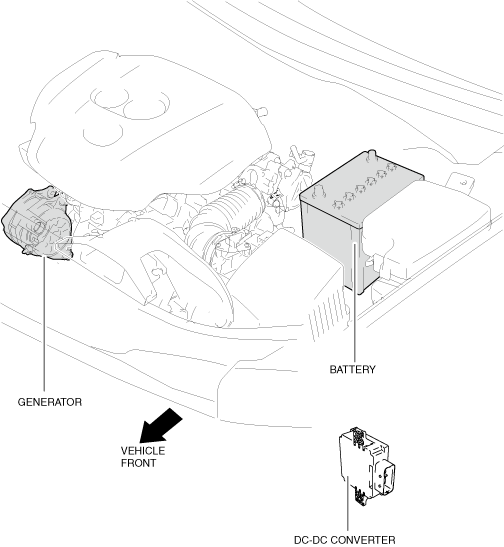

am6zzn00005718

• Consists of the following parts:

Battery	(See BATTERY [SKYACTIV-G 2.5T].)
Generator	(See GENERATOR [SKYACTIV-G 2.5T].)
DC-DC converter	(See DC-DC CONVERTER [SKYACTIV-G 2.5T].)
Charging system warning indication/warning light	(See CHARGING SYSTEM WARNING INDICATION/CHARGING SYSTEM WARNING LIGHT [SKYACTIV-G 2.5T].)
