STARTING SYSTEM [SKYACTIV-G 2.5T]

id0119q6105200

Outline

• A coaxial reduction type starter has been adopted to increase generated torque when cranking for an optimum engine start.

Structure

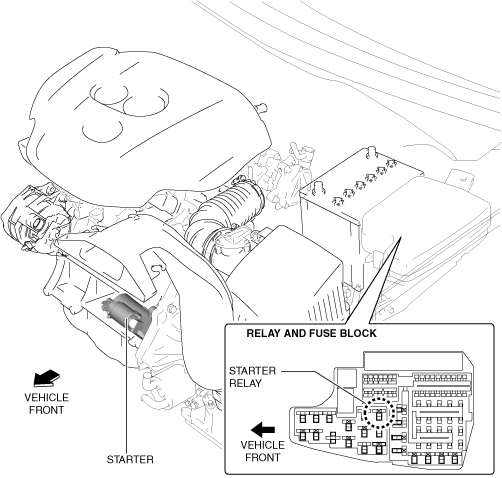

Structural view

ac5wzn00005403

• Consists of the following parts:

Starter	(See STARTER [SKYACTIV-G 2.5T].)
Starter relay	(See STARTER RELAY [SKYACTIV-G 2.5T].)
