CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T]

id0140h0800600

Replacement Part

O-ring

Quantity: 1

Location of use: CKP sensor

Oil and Chemical Type

Engine oil

Type: Recommended oil

Caution

• When replacing the CKP sensor, make sure there is no foreign matter on it such as metal shavings. If it is installed with foreign matter, the sensor output signal will malfunction resulting from fluctuation in magnetic flux and cause a deterioration in engine control.

1. Turn the steering wheel to full right lock.

2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3. Lift up the vehicle.

4. Remove the front splash shield (RH). (See SPLASH SHIELD REMOVAL/INSTALLATION.)

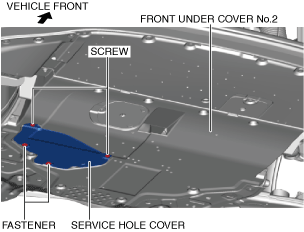

5. Remove the service hole cover (installed to front under cover No.2).

ac9uuw00006007

6. Disconnect the CKP sensor connector.

7. Remove the bolt.

ac9uuw00006008

8. Remove the CKP sensor.

9. Install in the reverse order of removal.
