CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2]

id0140z7800600

Replacement Part

Oil and Chemical Type

Caution

•  If foreign matter such as metal shavings adhere to the CKP sensor, it can cause abnormal output from the sensor because of flux turbulence, which can negatively affect the engine control. Verify that there is no foreign matter on the CKP sensor when replacing.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Lift up the vehicle.

3.  Remove the service hole cover (installed to front under cover No.2) used to remove the oil filter. (See OIL FILTER REPLACEMENT [SKYACTIV-D 2.2].)

4.  Remove the front splash shield (RH). (See SPLASH SHIELD REMOVAL/INSTALLATION.)

5.  Disconnect the CKP sensor connector.

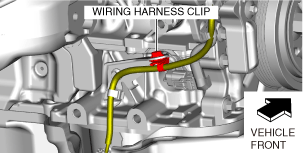

6.  Disconnect the wiring harness clip.

ac5wzw00012099

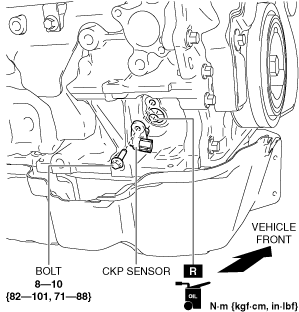

7.  Remove the CKP sensor.

ac5wzw00005826

8.  Install in the reverse order of removal.
