STEERING GEAR AND LINKAGE DISASSEMBLY
id061300801800
Special Service Tool (SST)
|
49 JP02 001
Adjustable wrench
|
|
1. Remove the steering gear and linkage. (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION.)
2. Disassemble in the order indicated in the figure.

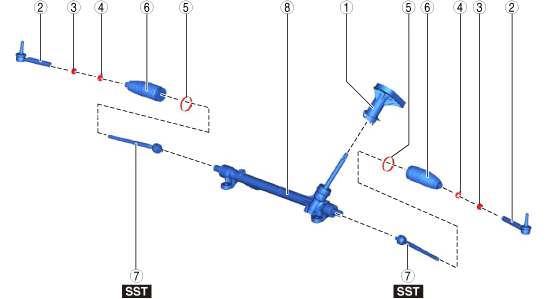

L.H.D.
ac5uuw00006383
|

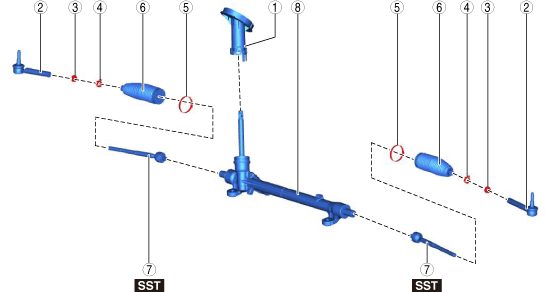

R.H.D.
ac5jjw00010291
|
|
1
|
Dust cover
|
|
2
|
Tie-rod end
(See Tie-rod End Disassembly Note.)
|
|
3
|
Locknut
|
|
4
|
Boot clamp
|
|
5
|
Boot band
(See Boot Band Disassembly Note.)
|
|
6
|
Boot
|
|
7
|
Tie rod
(See Tie Rod Disassembly Note.)
|
|
8
|
Steering gear
|
Tie-rod End Disassembly Note
1. Place alignment marks as shown in the figure for proper installation.
ac5uuw00006384
|
2. Remove the tie-rod end.
ac5uuw00006385
|
Boot Band Disassembly Note
1. Insert a flathead screwdriver into the crimped part of the boot band, expand the crimped part and remove the boot band.
ac5wzw00001035
|
Tie Rod Disassembly Note

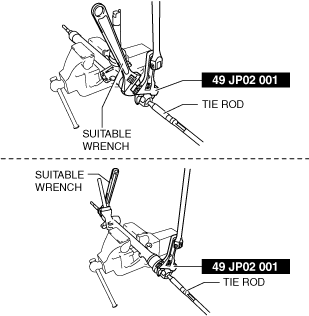

1. Lock the steering rack end (pinion gear side) against rotation using a wrench and remove the tie rod using the SST.
