SOLAR RADIATION SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

id0740a1802800

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the center speaker grille. (See SPEAKER GRILLE REMOVAL/INSTALLATION.)

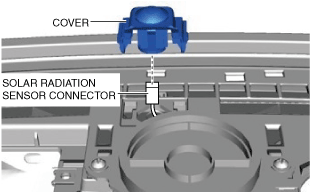

3.  Remove the cover.

ac5uuw00005227

4.  Disconnect the solar radiation sensor connector.

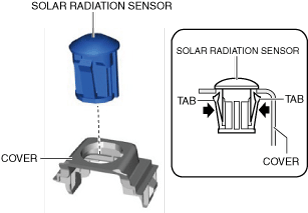

5.  Press the tab in the direction of the arrows shown in the figure and remove the solar radiation sensor from the cover.

ac5uuw00005228

6.  Install in the reverse order of removal.
