AMBIENT TEMPERATURE SENSOR INSPECTION [MANUAL AIR CONDITIONER]

id0740a2803300

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

3.  Remove the ambient temperature sensor. (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)

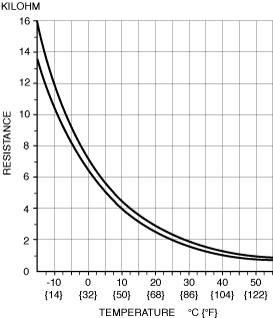

4.  Measure the temperature around the ambient temperature sensor and measure the resistance between the ambient temperature sensor terminals A and B.

ac5jjw00008832

am3zzw00000769

•  If the characteristics of the ambient temperature sensor are not as shown in the graph, replace the ambient temperature sensor. (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)
