VOICE OPERATION NOT POSSIBLE [ENTERTAINMENT SYSTEM [WITH CENTER DISPLAY]]

id0903l8061500

Description	VOICE OPERATION NOT POSSIBLE
	Voice operation of audio function, communication function, and navigation function is not possible Note •  The following applicable voice operations are not possible. ―  Voice operation of audio function •  Voice operation for specifying, song title, artist name, and album name is not possible ―  Hands-free telephone (HF/TEL) voice operation •  If the connectivity master unit (CMU) cannot read the telephone book, voice operation is not possible. •  If “Mr./Mrs.” is added to a person's name when speaking, normal voice operation is not possible (non-match to name registered in telephone book) •  If there are several names with similar pronunciation to the name registered in the telephone book, normal voice operation is not possible (John Smith/ Juan Smith) •  If the person's name that is spoken is short, normal voice operation is not possible (Ma/Pa) •  If the reading for a person's name is not registered in the telephone book, voice operation is not possible.
Possible Causes	•  Effects of non-genuine, after-market electrical components •  Malfunction due to conditions of use ―  Abnormally slow speech ―  Loud speech ―  Difference between language set in the CMU and language used in voice operation •  Malfunction due to effects of surrounding environment ―  Air from A/C is blown against the microphone ―  Loud road noise, A/C operation sound, external noise •  Speaker malfunction •  Audio amplifier malfunction (with Bose®) •  Tuner and amp unit (TAU) malfunction •  Connector poor contact or terminal damage •  Microphone malfunction ―  Open circuit in wiring harness between the following terminals •  CMU terminal 1P and microphone terminal E (L.H.D.)/F (R.H.D.) •  CMU terminal 1R and microphone terminal D •  CMU terminal 1S and microphone terminal A •  CMU terminal 1T and microphone terminal B ―  Short to ground in wiring harness between the following terminals •  CMU terminal 1P and microphone terminal E (L.H.D.)/F (R.H.D.) ―  Short to power supply in wiring harness between the following terminals •  CMU terminal 1P and microphone terminal E (L.H.D.)/F (R.H.D.) •  CMU terminal 1R and microphone terminal D ―  Microphone internal malfunction •  CMU internal malfunction

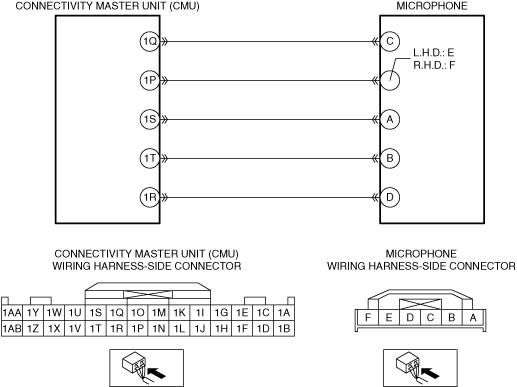

System Wiring Diagram

Diagnostic Procedure

Note

•  The malfunction may be caused by a non-genuine, after-market electrical component. If a non-genuine, after-market electrical component has been installed and it cannot be determined whether the malfunction cause is due to the non-genuine, after-market electrical component or not, more time may be required to perform the malfunction diagnosis. (See FOREWORD [ENTERTAINMENT SYSTEM [WITH CENTER DISPLAY]].)

Step	Inspection		Action
1	VERIFY AFTER-MARKET ELECTRICAL COMPONENT INSTALLATION CONDITION •  Verify if a non-genuine, after-market electrical component is installed. •  Has a non-genuine, after-market electrical component been installed?	Yes	Go to the next step.
		No	Go to Step 3.
2	VERIFY IF MALFUNCTION CAUSE IS AFTER-MARKET ELECTRICAL COMPONENT INSTALLATION •  Disconnect the non-genuine, after-market electrical component connectors. •  Verify if the malfunction symptom recurs as stated by the customer. •  Does the malfunction recur?	Yes	Go to the next step.
		No	Explain to the customer that the malfunction occurred due to the after-market electrical component installation.
3	VERIFY IF MALFUNCTION DUE TO LANGUAGE SETTING OF CONNECTIVITY MASTER UNIT (CMU) •  Switch the ignition to ACC or ON (engine off or on). •  Select the following by operating the commander switch or the center display. ―  Settings ―  System ―  Language •  Does the language set to the CMU match the language used in voice operations?	Yes	Go to the next step.
		No	Select the language used for voice operations, then go to Step 14.
4	VERIFY IF MALFUNCTION DUE TO CUSTOMER USE METHOD •  Switch the ignition to ACC or ON (engine off or on). •  Press the TALK button on the steering switch. •  After the voice guidance instructs the user to speak after the beep, say, “AM” into the microphone in a normal or slightly loud voice. •  Does the center display change to the AM radio screen? Determination criteria ―  Screen changes to AM screen once or more by voicing 10 times.	Yes	System is normal. (Explain the contents of the servicing to the customer)
		No	Go to the next step.
5	VERIFY IF MALFUNCTION DUE TO EFFECTS OF SURROUNDING ENVIRONMENT •  Verify if air from the A/C is being blown against the microphone. •  Move the vehicle to a location with little external noise. •  Press the TALK button on the steering switch. •  After the voice guidance instructs the user to speak after the beep, say, “AM” into the microphone in a normal or slightly loud voice. •  Does the center display change to the AM radio screen? Determination criteria ―  Screen changes to AM screen once or more by voicing 10 times.	Yes	System is normal. (Explain the contents of the servicing to the customer)
		No	Go to the next step.
6	DETERMINE IF MALFUNCTION IS SPEAKER, AUDIO AMPLIFIER RELATED •  Switch the ignition to ACC or ON (engine off or on). •  Launch the on-board diagnostic assist function. (See DIAGNOSTIC ASSIST FUNCTION [CONNECTIVITY MASTER UNIT].) •  Select assist code “94”. •  Press the [ENTER] and verify that the sound is output from each speaker. •  Is sound output from each speaker?	Yes	The speakers and audio amplifier are normal. Go to the next step.
		No	Perform malfunction diagnosis according to NO SOUND OUTPUT IN ALL MODES. (See NO SOUND OUTPUT IN ALL MODES [ENTERTAINMENT SYSTEM [WITH CENTER DISPLAY]].)
7	DETERMINE IF MALFUNCTION IS TAU •  Switch the ignition to ACC or ON (engine off or on). •  Operate the command switch or center display and verify if sound is output from the following modes. ―  Bluetooth® audio ―  Internet radio ―  USB audio •  Is sound output?	Yes	TAU is normal. Go to the next step.
		No	Perform malfunction diagnosis according to NO SOUND OUTPUT IN MULTIPLE MODES. (See NO SOUND OUTPUT IN MULTIPLE MODES [ENTERTAINMENT SYSTEM [WITH CENTER DISPLAY]].)
8	DETERMINE IF MALFUNCTION IS MICROPHONE RELATED •  Switch the ignition to ACC or ON (engine off or on). •  Launch the on-board diagnostic assist function. (See DIAGNOSTIC ASSIST FUNCTION [CONNECTIVITY MASTER UNIT].) •  Select assist code “61”. •  Press ENTER. •  Say, “AM” into the microphone in a normal or slightly loud voice. •  When speaking, verify if the “Microphone” item is displayed. •  Is the “Microphone” item displayed?	Yes	The microphone is normal. Go to Step 13.
		No	Go to the next step.
9	MICROPHONE CONNECTOR INSPECTION •  Switch the ignition off. •  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) •  Disconnect the microphone connector. •  Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. •  Is the connector normal?	Yes	Go to the next step.
		No	Repair or replace the connector, then go to Step 14.
10	VERIFY IF MALFUNCTION CAUSE IS OPEN CIRCUIT IN WIRING HARNESS BETWEEN CMU AND MICROPHONE •  Switch the ignition off. •  Disconnect the CMU connector. •  Verify that the microphone connector is disconnected. •  Inspect the wiring harness for continuity between the following terminals (vehicle wiring harness side). ―  CMU terminal 1P and microphone terminal E (L.H.D.)/F (R.H.D.) ―  CMU terminal 1R and microphone terminal D ―  CMU terminal 1S and microphone terminal A ―  CMU terminal 1T and microphone terminal B •  Is there continuity?	Yes	Go to the next step.
		No	•  Refer to the wiring diagram and verify if there is a common connector between the following terminals. ―  CMU terminal 1P and microphone terminal E (L.H.D.)/F (R.H.D.) ―  CMU terminal 1R and microphone terminal D ―  CMU terminal 1S and microphone terminal A ―  CMU terminal 1T and microphone terminal B If there is a common connector: •  Inspect the common connector and terminals for corrosion, damage, or disconnection and the common wiring harnesses for an open circuit to determine the malfunctioning location. •  Repair or replace the malfunctioning location. If there is no common connector: •  Repair or replace the wiring harness which has an open circuit. •  Go to Step 14.
11	VERIFY IF MALFUNCTION CAUSE IS SHORT CIRCUIT TO GROUND IN WIRING HARNESS BETWEEN CMU AND MICROPHONE •  Verify that the CMU and microphone connectors are disconnected. •  Inspect for continuity between the following wiring harness terminals (vehicle wiring harness side) and body ground. ―  Microphone terminal E (L.H.D.)/F (R.H.D.) •  Is there continuity?	Yes	•  Refer to the wiring diagram and verify if there is a common connector between the following terminals. ―  CMU terminal 1P and microphone terminal E (L.H.D.)/F (R.H.D.) If there is a common connector: •  Inspect the common connector and terminals for corrosion, damage, or disconnection and the common wiring harnesses for short to ground to determine the malfunctioning location. •  Repair or replace the malfunctioning location. If there is no common connector: •  Repair or replace the wiring harness which is shorted to ground. •  Go to Step 14.
		No	Go to the next step.
12	VERIFY IF MALFUNCTION CAUSE IS SHORT CIRCUIT TO POWER SUPPLY IN WIRING HARNESS BETWEEN CMU AND MICROPHONE •  Verify that the CMU and microphone connectors are disconnected. •  Reconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) •  Switch the ignition to ACC or ON (engine off or on). •  Measure the voltage at the following terminals (vehicle wiring harness side). ―  Microphone terminal E (L.H.D.)/F (R.H.D.) ―  Microphone terminal D •  Is the voltage B+?	Yes	•  Refer to the wiring diagram and verify if there is a common connector between the following terminals. ―  CMU terminal 1P and microphone terminal E (L.H.D.)/F (R.H.D.) ―  CMU terminal 1R and microphone terminal D If there is a common connector: •  Inspect the common connector and terminals for corrosion, damage, or disconnection and the common wiring harnesses for short to power supply to determine the malfunctioning location. •  Repair or replace the malfunctioning location. If there is no common connector: •  Repair or replace the wiring harness which is shorted to the power supply. •  Go to Step 14.
		No	Replace the microphone, then go to Step 14. (See MICROPHONE REMOVAL/INSTALLATION.)
13	INSPECT CMU CONNECTOR •  Switch the ignition off. •  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) •  Disconnect the CMU connector. •  Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. •  Is the connector normal?	Yes	Replace the CMU, then go to the next step. (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION.)
		No	Repair or replace the connector, then go to the next step.
14	VERIFY IF MALFUNCTION CAUSE IS CORRECTED •  Switch the ignition off. •  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) •  Connect all the connectors. •  Reconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) •  Switch the ignition to ACC or ON (engine off or on). •  Move the vehicle to a location with little external noise. •  Press the TALK button on the steering switch. •  After the voice guidance instructs the user to speak after the beep, say, “AM” into the microphone in a normal or slightly loud voice. •  Does the center display change to the AM radio screen? Determination criteria ―  Screen changes to AM screen once or more by voicing 10 times.	Yes	Troubleshooting completed. (Explain the contents of the servicing to the customer.)
		No	Verify the malfunction symptom in the symptom troubleshooting chart and perform the other applicable malfunction diagnosis. (See SYMPTOM TROUBLESHOOTING [ENTERTAINMENT SYSTEM [WITH CENTER DISPLAY]].)
