BONNET REMOVAL/INSTALLATION

id091000407200

Warning

• Always perform the procedure with at least another person to prevent the bonnet from falling. Otherwise, the bonnet may fall and cause injury.

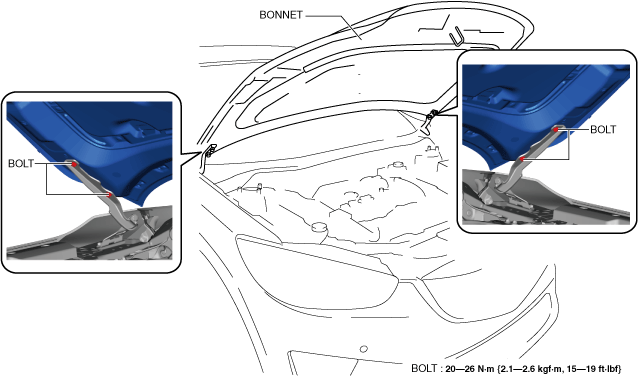

1. Remove the bolts.

ac5wzw00013804

2. Remove the bonnet.

• When removing the bonnet hinge, perform the following procedure:

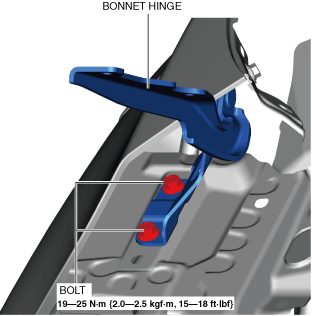

1. Remove the bolts.

ac5wzw00011079

2. Remove the bonnet hinge.

3. Install in the reverse order of removal.

4. Perform the bonnet adjustment. (See BONNET ADJUSTMENT.)
