BONNET ADJUSTMENT

id091000407300

Gap Adjustment

1. Verify that the gap between the hood and the body is within the specification.

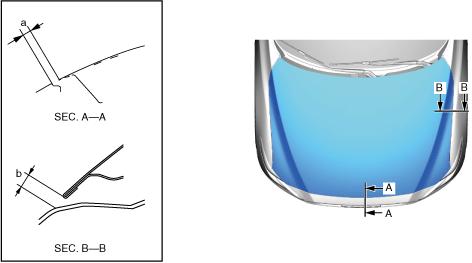

ac5wzw00011080

Standard clearance

a: 1.7—5.3 mm {0.07—0.20 in}

b: 2.5—4.5 mm {0.10—0.17 in}

2. Loosen bolts and adjust the bonnet.

3. Tighten the bolts. (See BONNET REMOVAL/INSTALLATION.)

4. Verify that the bonnet opens/closes smoothly.

• If the bonnet does not open/close smoothly, adjust the bonnet latch position. (See BONNET LATCH REMOVAL/INSTALLATION.)

Height Difference Adjustment

1. Verify that the height difference between the hood and the body is within the specification.

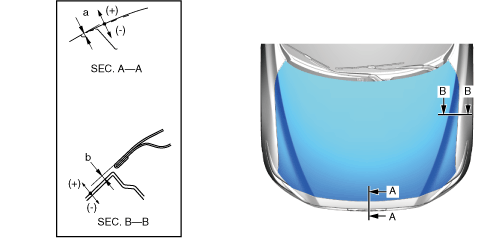

ac5wzw00011081

Standard clearance

a: -1.0—1.0 mm {-0.039—0.039 in}

b: -1.0—1.0 mm {-0.039—0.039 in}

2. Turn the stop rubber to adjust the height of the bonnet.

ac5wzw00011082
