FRONT FENDER INSULATOR REMOVAL/INSTALLATION

id091000804000

Front Fender Insulator No.1

1.  Remove the front over fender. (See FRONT OVER FENDER REMOVAL/INSTALLATION.)

2.  Remove the front mudguard. (See MUDGUARD REMOVAL/INSTALLATION.)

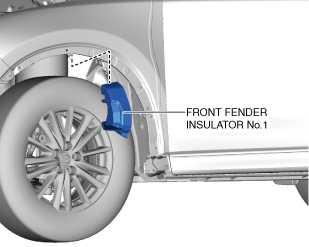

3.  Remove the front fender insulator No.1.

ac5wzw00011138

4.  Install in the reverse order of removal.

Front Fender Insulator No.2

1.  Remove the front over fender. (See FRONT OVER FENDER REMOVAL/INSTALLATION.)

2.  Remove the front mudguard. (See MUDGUARD REMOVAL/INSTALLATION.)

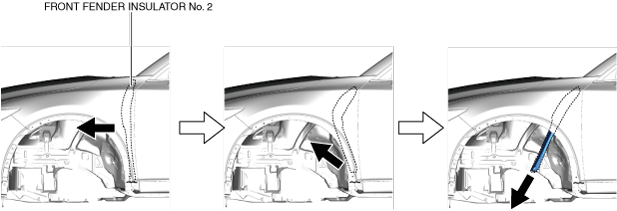

3.  Move the front fender insulator No.2 in the direction of the arrows and remove it.

ac5wzw00011139

4.  Install in the reverse order of removal.
