SET PLATE REMOVAL/INSTALLATION

id091000878900

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the seal board upper. (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)

3.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

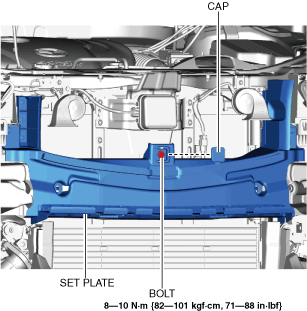

4.  Remove the cap.

ac5wzw00011150

5.  Remove the bolt.

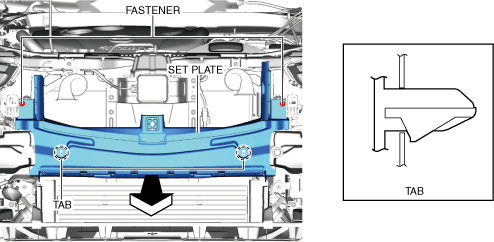

6.  Remove the fasteners.

ac5wzw00011151

7.  Remove the tabs.

8.  Remove the set plate in the direction of the arrow shown in the figure.

9.  Install in the reverse order of removal.
